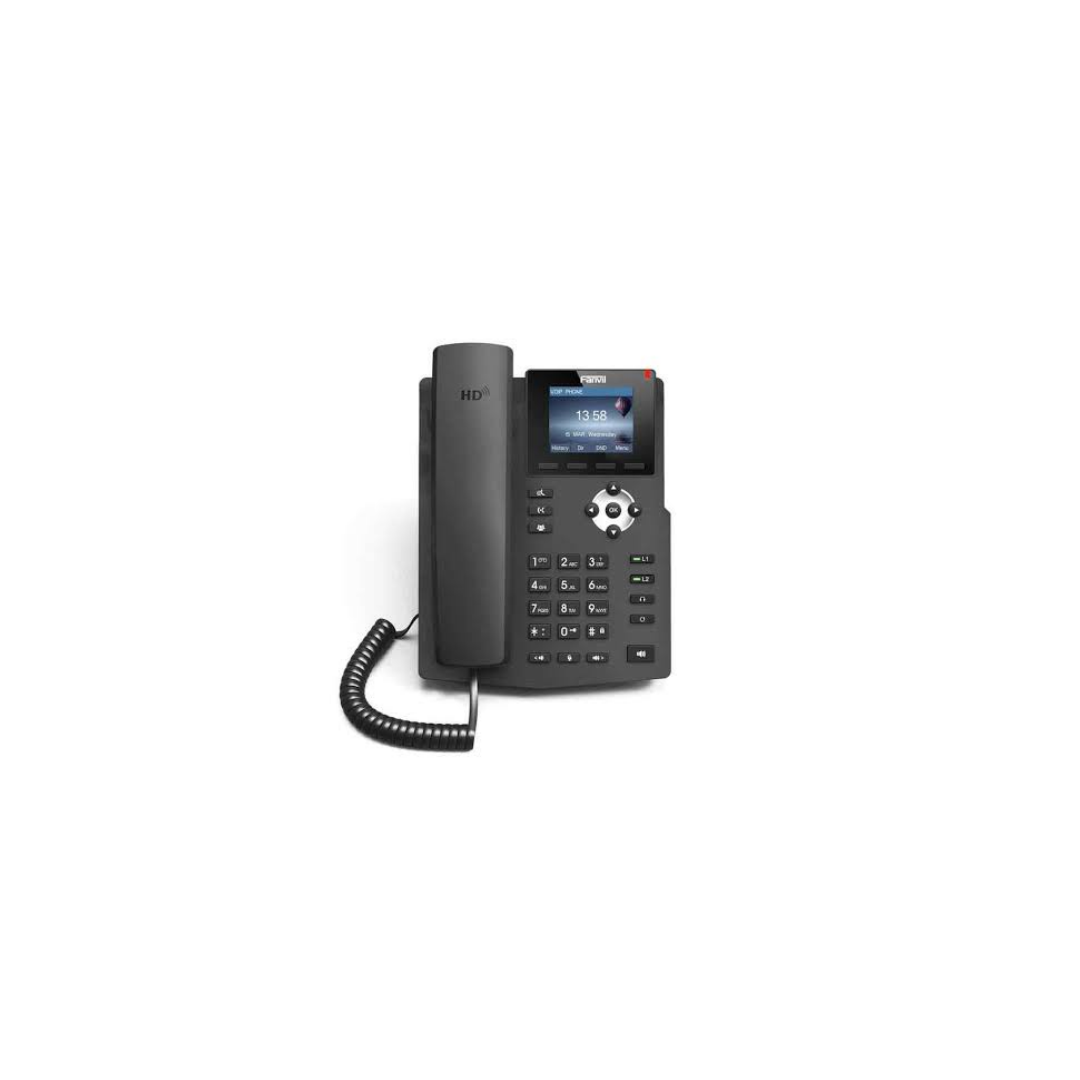

Fanvil X3S Pro IP Phone

The Fanvil X3S Pro IP Phone is an entry-level business VoIP phone designed for offices, small businesses, and other desktop communication environments. Its 2.4-inch color display provides a clear interface for viewing call information, navigating menus, and managing phone functions.

The Fanvil X3S Pro supports 4 SIP lines and HD voice through the handset and hands-free speakerphone. It also supports 6-party local audio conferencing, EHS wireless headset connectivity, and a 1000-entry local phonebook. The phone includes dual 10/100 Mbps Ethernet ports with PC passthrough for convenient desktop network connectivity.

The X3S Pro is the non-PoE version of the X3S Pro family and uses an external power adapter. It supports desktop and wall-mounted installation, with an additional wall-hanging part required for wall mounting.

Main Features

• 2.4-Inch Color Display: Features a 320 × 240 pixel color screen for call information and menu navigation.
• 4 SIP Lines: Supports up to 4 SIP accounts for managing multiple VoIP lines.
• HD Voice: Provides HD audio through the handset and hands-free speakerphone.
• 6-Party Local Conference: Supports local 6-party audio conferencing directly from the phone.
• EHS Wireless Headset Support: Supports wireless headset connectivity through compatible EHS adapters.
• Dual Fast Ethernet Ports: Provides 2 × 10/100 Mbps Ethernet ports with PC passthrough connectivity.
• 1000-Entry Local Phonebook: Stores up to 1000 local contacts and supports remote phonebook functionality through XML/LDAP.
• Flexible Installation: Supports desktop placement with adjustable stand angles and wall mounting with an additional wall-hanging part.
• Multiple Call Functions: Supports call hold, transfer, forwarding, waiting, speed dial, redial, intercom, DND, and other business calling functions.
• Non-PoE Power Supply: Uses an external DC 5V/0.6A power adapter and does not support PoE.

Main Specifications

• Model Name: Fanvil X3S Pro Entry-Level IP Phone
• Display: 2.4-inch color LCD, 320 × 240 pixels
• SIP Account Capacity: 4 SIP lines
• Audio Codecs: G.711A/U, G.723.1, G.726, G.729AB, iLBC, G.722, Opus
• Local Audio Conference: 6-party audio conference
• Network Interfaces: 2 × 10/100 Mbps Fast Ethernet ports with PC passthrough
• Power Supply: External DC 5V/0.6A power adapter
• PoE: Not supported on X3S Pro
• Headset Connectivity: RJ9 headset port with EHS support through compatible EHS adapter
• Phonebook Capacity: 1000 local phonebook entries; remote XML/LDAP phonebook support
