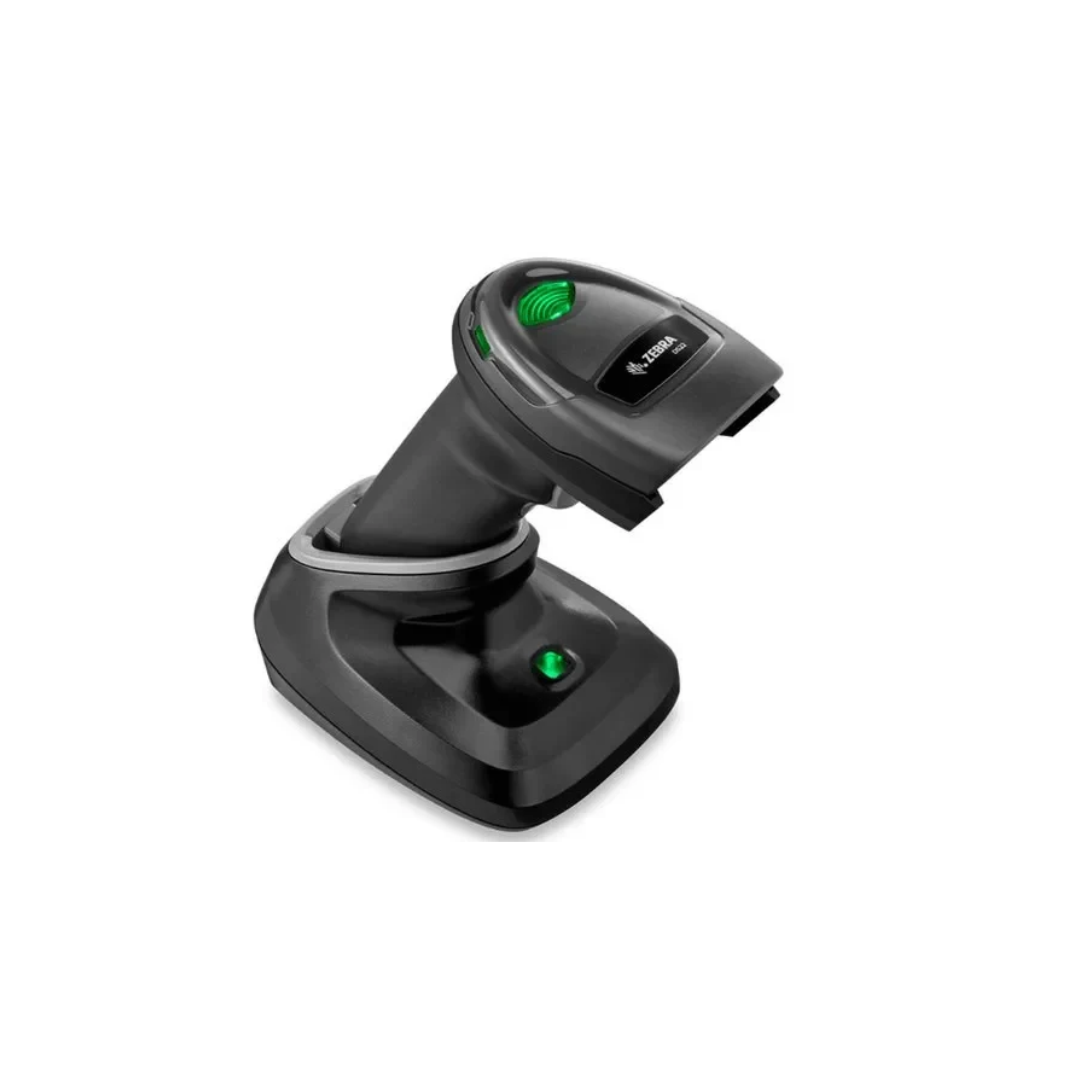

Zebra DS2278 Bluetooth Barcode and QR Code Scanner

The Zebra DS2278 Bluetooth Barcode and QR Code Scanner is a cordless handheld 1D/2D area-imaging scanner designed for retail, point-of-sale, inventory, coupons, and general barcode data capture. It uses a 640 × 480 pixel array imager to scan supported 1D and 2D barcodes, including QR codes.

The DS2278 uses Bluetooth 4.0 with BLE and provides a minimum line-of-sight wireless range of 30 feet (10 meters). It features a 2,400 mAh Li-Ion battery with up to 84 hours of operating time under Zebra’s specified test profile. The scanner is supplied with a presentation cradle and USB cable.

Key Features

• 1D & 2D Scanning: Supports scanning of 1D and 2D barcode symbologies.
• Bluetooth 4.0 Connectivity: Provides cordless connectivity using Bluetooth 4.0 with BLE.
• 10-Meter Wireless Range: Provides a minimum line-of-sight range of 30 feet (10 meters).
• 640 × 480 Pixel Imager: Uses a 640 × 480 pixel array imager for barcode capture.
• QR Code Scanning: Supports QR Code and other supported 2D barcode symbologies.
• 2,400 mAh Battery: Uses a rechargeable 2,400 mAh Li-Ion battery.
• Up to 84 Hours of Operation: Provides up to 84 hours of operating time under Zebra’s specified test profile.
• Presentation Cradle: Includes a presentation cradle for charging and hands-free scanning.
• Durable Construction: Designed to withstand multiple 5-foot (1.5-meter) drops to concrete.
• IP52 Protection: Provides IP52 environmental sealing against dust and liquid exposure.

Specifications

• Model Name: Zebra DS2278 Cordless Handheld Barcode Scanner
• Scanner Type: 1D/2D Area Imager
• Image Sensor: 640 × 480 pixels
• Wireless Connectivity: Bluetooth 4.0 with BLE, Class 2
• Wireless Range: Minimum 30 ft. (10 m) line of sight; up to 300 ft. (100 m) when paired with CR2278 cradle under specified conditions
• Battery: 2,400 mAh Li-Ion
• Operating Time: Up to 84 hours per full charge
• Scans per Charge: Up to 110,000 scans at 60 scans per minute under Zebra’s specified test profile
• Communication Interfaces: USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 through the cradle
• Drop & Sealing Specification: Multiple 5-foot (1.5 m) drops to concrete; IP52 environmental sealing
• Dimensions & Weight: 175 × 66 × 99 mm (H × W × D); Net Weight: 214 g without cable
