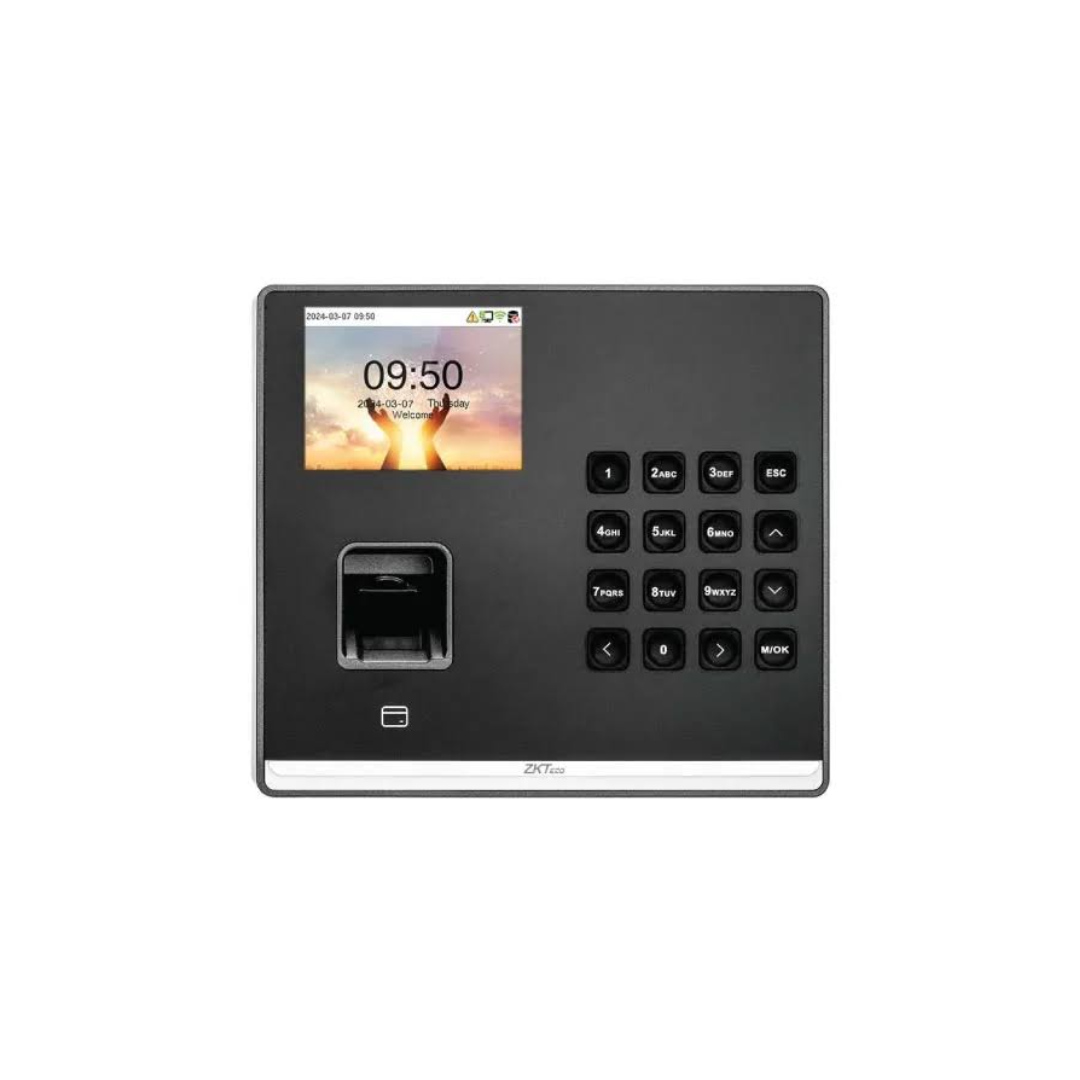

ZKTeco M2-LR Attendance Device

The ZKTeco M2-LR Attendance Device provides fingerprint-based time attendance and basic access control in a compact terminal. It supports fingerprint, card, and password authentication and includes a 2.8-inch TFT color LCD with a 320 × 240 resolution.

The ZKTeco M2-LR Attendance Device supports up to 3,000 users, 3,000 fingerprint templates, and 150,000 transaction records in the standard version. It provides TCP/IP communication and USB Type-A connectivity, while Wi-Fi is available as an optional function.

The terminal also supports connections for an electric lock, door sensor, and exit button. An optional 2,000mAh lithium backup battery provides up to 4 hours of operating time.

Main Features

• Fingerprint, ID card, and password authentication
• Up to 3,000 users in the standard version
• Up to 3,000 fingerprint templates
• Up to 150,000 transaction records
• 2.8-inch TFT color LCD with 320 × 240 resolution
• TCP/IP network communication
• Optional 2.4GHz Wi-Fi connectivity
• USB Type-A for USB drive data transfer
• Electric lock, door sensor, and exit button support
• Optional 2,000mAh rechargeable lithium battery

Main Specifications

• Model: ZKTeco M2-LR / SenseFP M2
• Product Type: Fingerprint Time Attendance & Access Control Terminal
• Operating System: Linux
• Processor: Dual-Core 1GHz
• Display: 2.8-inch TFT Color LCD
• User Capacity: 3,000 users
• Fingerprint Capacity: 3,000 templates
• Transaction Capacity: 150,000 records
• Verification Speed: Less than 1 second
• Dimensions: 154 mm × 138 mm × 34 mm
