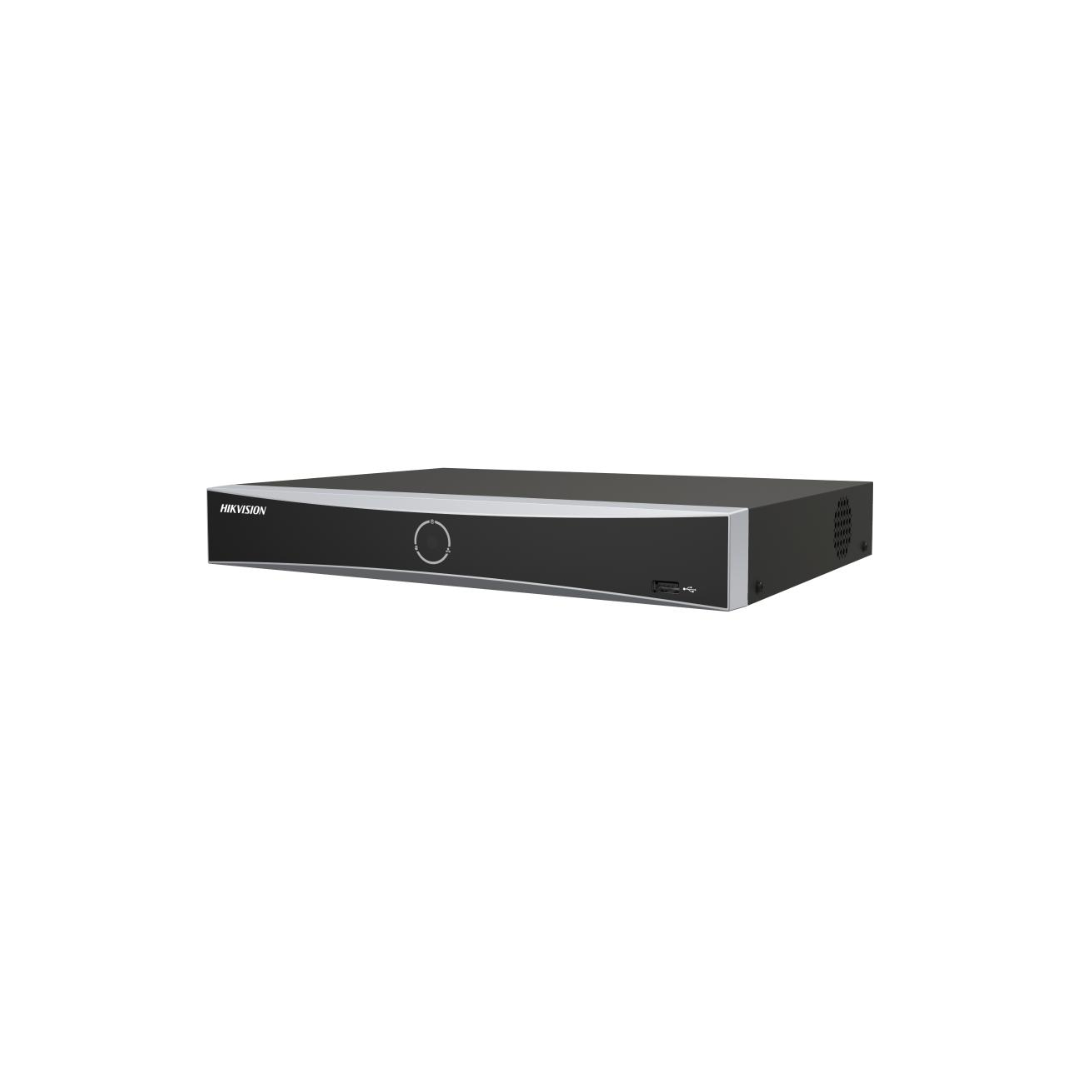

DS-7616NXI-K2 (16-Port) NVR

The Hikvision DS-7616NXI-K2 16-Port NVR is designed for high-definition IP surveillance systems requiring reliable recording and centralized camera management. It supports up to 16 IP camera inputs and H.265+, H.265, H.264+, and H.264 video compression formats for efficient video storage and transmission.

The NVR supports high-resolution decoding and intelligent features including AcuSense, Motion Detection 2.0, facial recognition, smart search, and smart playback. It provides HDMI and VGA outputs, with HDMI supporting up to 4K resolution. Its 2 SATA interfaces provide flexible HDD storage for surveillance recording applications.

Key Features

16-Port IP Camera Support – Supports up to 16 IP camera inputs.
H.265+ Compression – Helps reduce storage space and network bandwidth requirements.
High-Resolution Decoding – Supports high-definition video decoding.
AcuSense Technology – Provides intelligent video analysis capabilities.
Motion Detection 2.0 – Supports advanced motion detection functions.
Facial Recognition – Supports facial recognition for surveillance applications.
4K HDMI Output – Supports high-resolution video output up to 4K.
Smart Search & Playback – Helps search and review recorded footage efficiently.
Dual SATA Interfaces – Provides 2 SATA interfaces for HDD installation.
16-Channel Synchronous Playback – Supports simultaneous playback of multiple channels.

Main Specifications

Model: DS-7616NXI-K2
NVR Type: 16-Port Network Video Recorder
IP Camera Inputs: Up to 16 channels
Video Compression: H.265+ / H.265 / H.264+ / H.264
Decoding Capacity: Up to 1-ch @ 12 MP / 2-ch @ 8 MP / 4-ch @ 4 MP / 8-ch @ 1080p
Smart Functions: AcuSense / Motion Detection 2.0 / Facial Recognition
Video Outputs: HDMI and VGA
HDMI Resolution: Up to 4K
Storage Interface: 2 × SATA
Playback: Up to 16-channel synchronous playback
