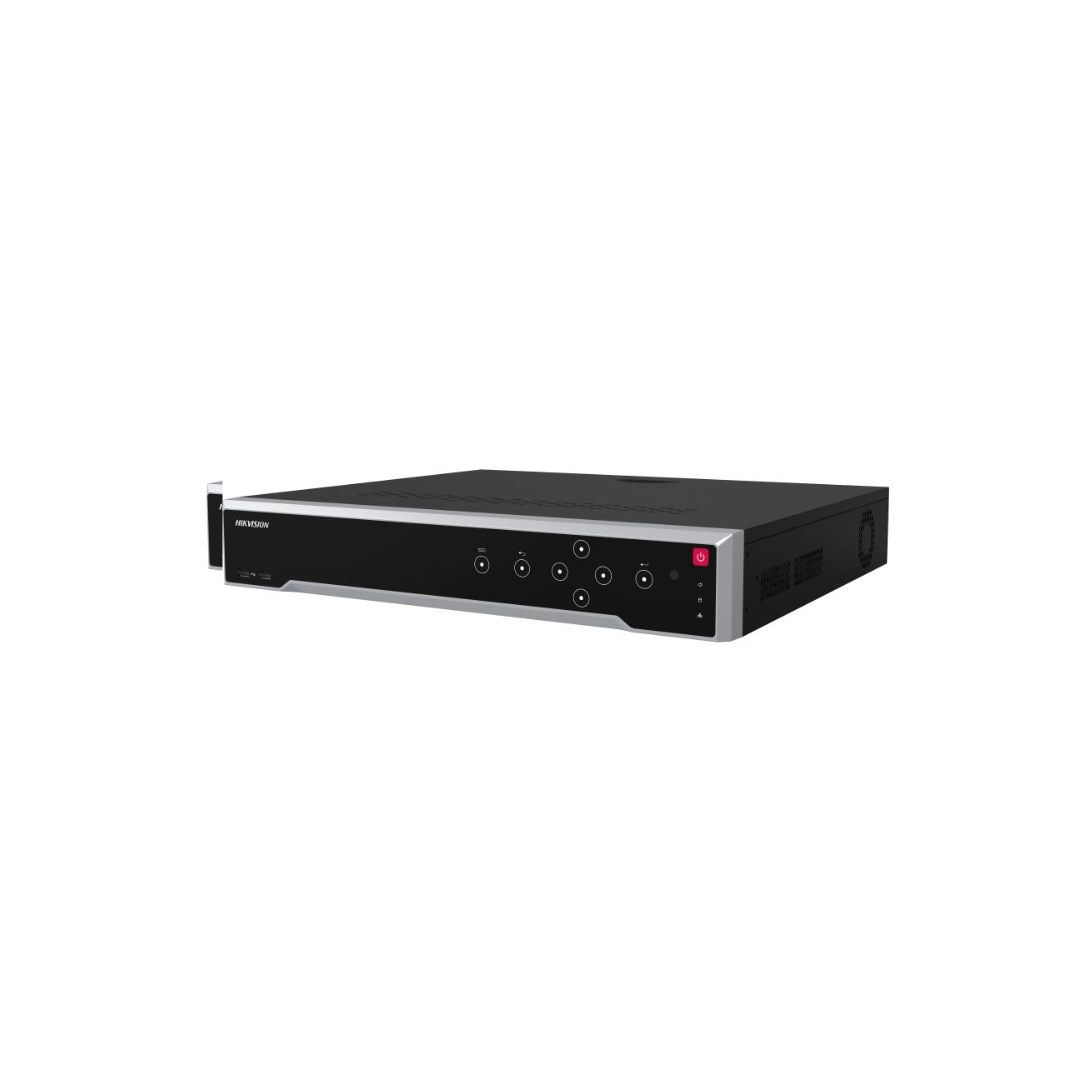

DS-7764NI-M4 (64-Port) NVR

The Hikvision DS-7764NI-M4 64-Port NVR offers a powerful and reliable security management solution for modern IP surveillance setups. Designed to support up to 64 IP camera inputs, this network video recorder provides centralized video recording, real-time live monitoring, and effortless playback management for high-demand environments.

Equipped with smart H.265+ video compression, the recorder optimizes system performance. In fact, H.265+ technology significantly reduces overall storage consumption and network bandwidth usage. As a result, you can maintain continuous high-definition video recording without sacrificing image clarity or network efficiency.

Furthermore, the Hikvision DS-7764NI-M4 64-Port NVR delivers high-performance capabilities with full-channel recording supporting camera resolutions up to 32 MP. It also simplifies post-event analysis with 16-channel synchronous playback at up to 1080p resolution. This feature allows security operators to review multiple camera streams simultaneously for rapid threat assessment.

For local video archiving, the Hikvision DS-7764NI-M4 64-Port NVR features 4 SATA interfaces for HDD connection. Therefore, it offers exceptional storage scalability and extended retention times for multi-camera deployments in warehouses, offices, retail spaces, and large commercial facilities.

Key Features of the Hikvision DS-7764NI-M4 64-Port NVR

• 64 IP Camera Capacity: Supports up to 64 IP camera inputs for expansive property coverage.

• 32 MP High-Resolution Recording: Features full-channel recording capability at up to 32 MP resolution.

• Smart H.265+ Compression: Dramatically cuts bandwidth usage and storage requirements using advanced H.265+ technology.

• 16-Channel Synchronous Playback: Enables simultaneous 16-channel video playback at up to 1080p resolution for quick incident investigations.

• 4 SATA HDD Interfaces: Provides up to 4 SATA interfaces for expanded drive capacity and long-term data retention.

• Commercial-Grade Reliability: Engineered for high-density surveillance across enterprise, industrial, and commercial environments.

Main Specifications

• Model Name: DS-7764NI-M4 (64-Port)

• NVR Type: 64-Port Network Video Recorder

• IP Camera Inputs: Up to 64 channels (up to 32 MP)

• Video Compression: H.265+

• Recording Resolution: Full-channel recording at up to 32 MP resolution

• Synchronous Playback: 16 channels at up to 1080p resolution

• Storage Interface: Up to 4 × SATA interfaces for HDD connection
