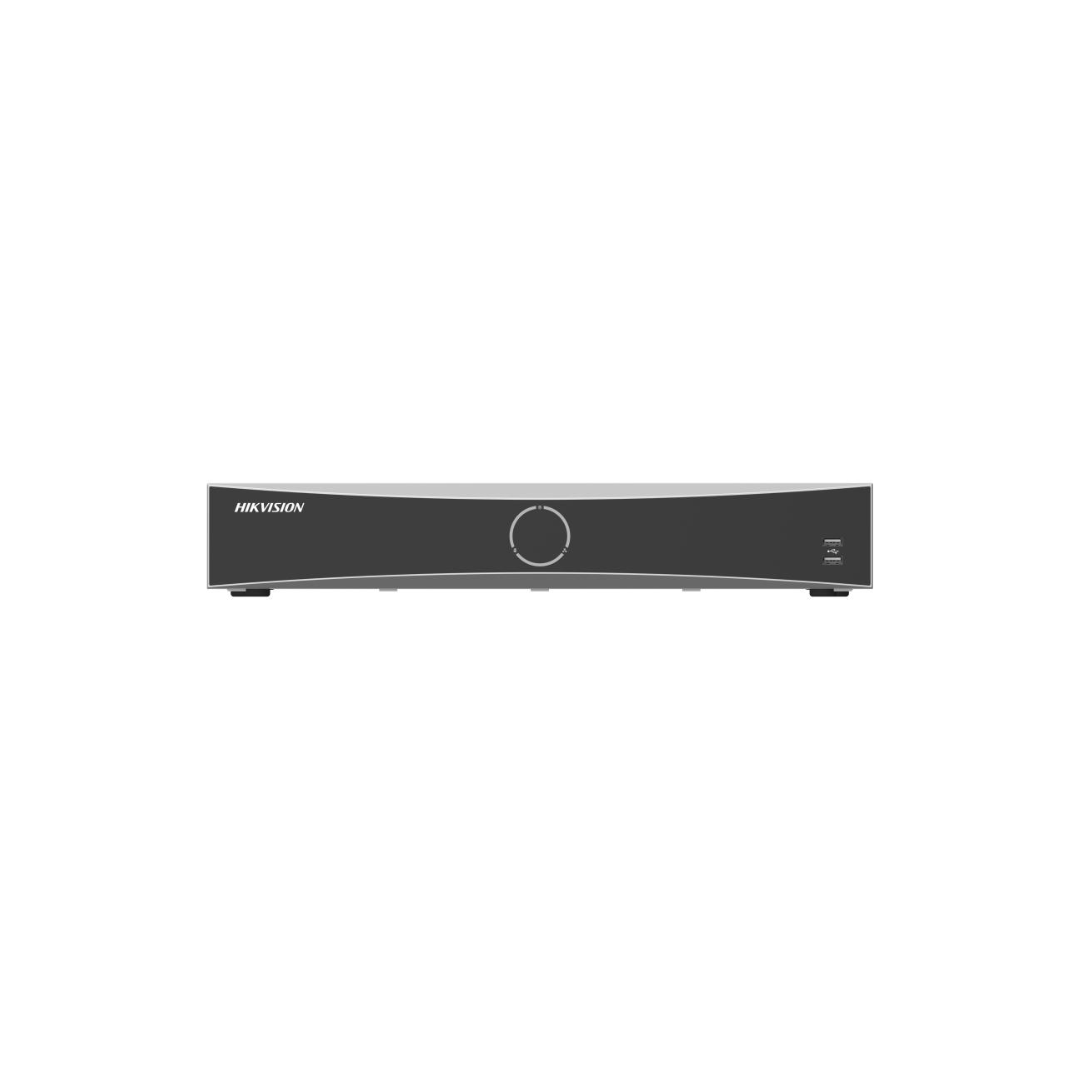

DS-7716NXI-K4 (16-Port) NVR

The Hikvision DS-7716NXI-K4 16-Port NVR is a reliable and high-performance Network Video Recorder designed for professional IP surveillance applications. With support for up to 16 IP camera channels, it provides centralized video recording, live monitoring, playback, and remote surveillance management.

The DS-7716NXI-K4 features Hikvision AcuSense technology, providing intelligent security functions such as human and vehicle detection. These features help improve monitoring efficiency and reduce false alarms caused by irrelevant motion.

With up to 160 Mbps incoming bandwidth, the NVR can efficiently handle multiple high-resolution IP camera streams. It supports H.265+, H.265, H.264+, and H.264 video compression, helping reduce storage requirements and network bandwidth consumption while maintaining efficient video recording.

The Hikvision DS-7716NXI-K4 supports high-resolution video decoding of up to 2-ch @ 12 MP, 3-ch @ 8 MP, 6-ch @ 4 MP, or 12-ch @ 1080p. This provides flexible monitoring options for different camera resolutions and surveillance requirements.

The NVR also features HDMI and VGA video outputs, with HDMI supporting up to 4K resolution. Its multi-channel playback capability allows users to review recordings from multiple cameras efficiently.

With its combination of 16-channel IP camera support, AcuSense intelligent technology, H.265+ compression, 160 Mbps incoming bandwidth, and high-resolution decoding, the Hikvision DS-7716NXI-K4 is suitable for offices, retail stores, warehouses, commercial buildings, and other professional security applications.

Key Features

• 16-Channel IP Camera Support: Supports up to 16 IP cameras for centralized surveillance and recording.
• Hikvision AcuSense Technology: Provides intelligent video analysis and advanced security monitoring.
• Human and Vehicle Detection: Helps identify humans and vehicles and reduce unnecessary false alarms.
• 160 Mbps Incoming Bandwidth: Supports high-bandwidth video streams from multiple IP cameras.
• H.265+ Video Compression: Helps reduce storage requirements and network bandwidth consumption.
• High-Resolution Video Decoding: Supports video decoding up to 12 MP resolution.
• Motion Detection 2.0: Provides intelligent motion detection for efficient event monitoring.
• 4K HDMI Output: Supports high-quality video display with HDMI output up to 4K resolution.
• 16-Channel Synchronous Playback: Allows simultaneous playback of recordings from multiple channels.
• Remote Monitoring Support: Enables convenient remote surveillance and management through Hik-Connect.

Main Specifications

• Model: Hikvision DS-7716NXI-K4
• Product Type: 16-Channel Network Video Recorder (NVR)
• IP Camera Inputs: Up to 16 Channels
• Incoming Bandwidth: Up to 160 Mbps
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Decoding Capacity: Up to 2-ch @ 12 MP / 3-ch @ 8 MP / 6-ch @ 4 MP / 12-ch @ 1080p
• Intelligent Technology: Hikvision AcuSense
• Video Output: HDMI and VGA
• HDMI Resolution: Up to 4K
• Synchronous Playback: Up to 16 Channels
