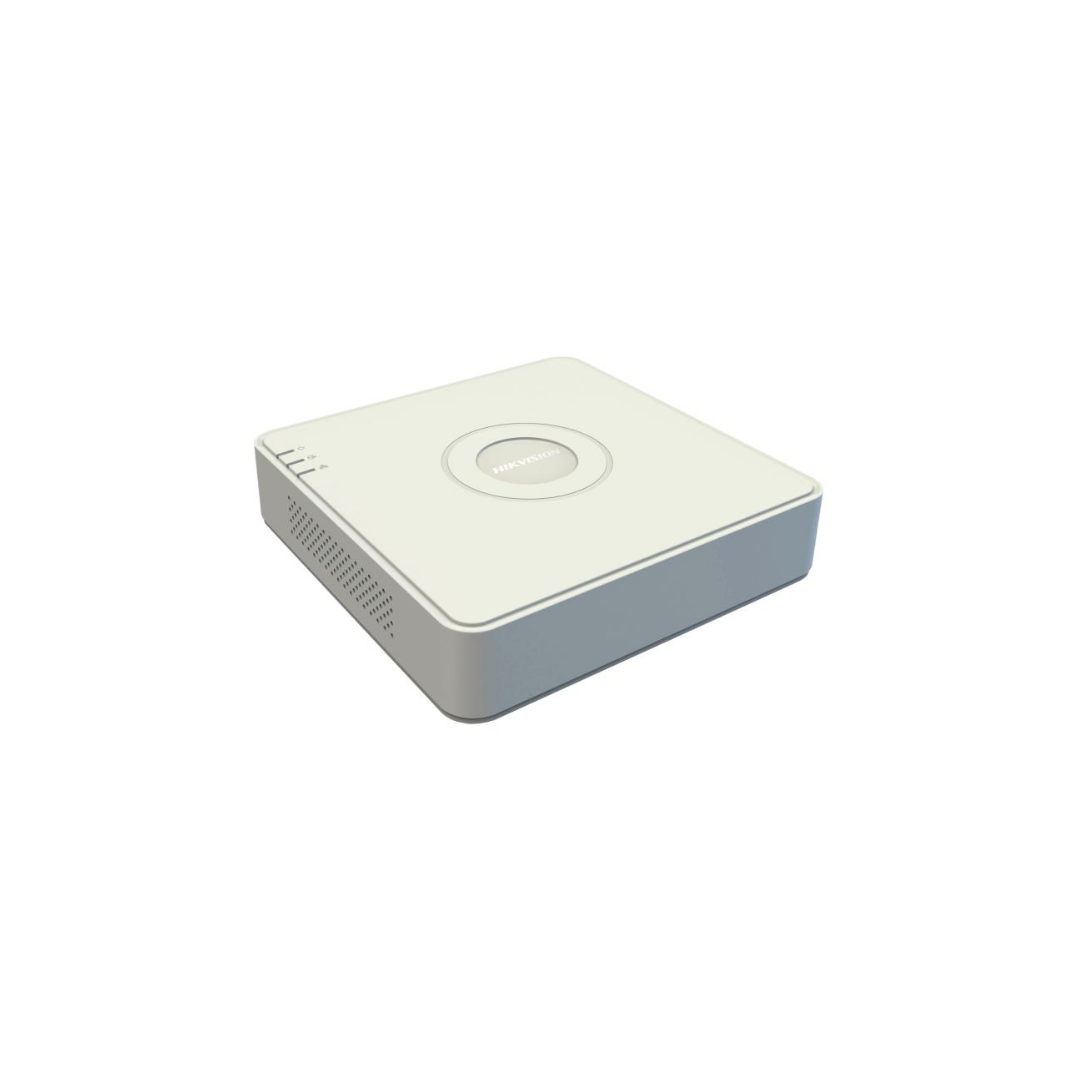

DS-7104NI-Q1/4P (4-Port /PoE Built) NVR

The Hikvision DS-7104NI-Q1/4P 4 Port PoE NVR is a reliable and efficient surveillance recording solution designed for homes, offices, shops, and small business security systems. Its built-in PoE ports simplify IP camera installation by providing both power and network connectivity through a single Ethernet cable.

This plug-and-play PoE design helps reduce installation complexity and eliminates the need for separate power connections for compatible IP cameras. With support for up to 4 IP cameras, the recorder provides centralized video recording, monitoring, and playback for small to medium-sized surveillance applications.

The NVR supports advanced H.265+, H.265, H.264+, and H.264 video compression technologies, helping reduce bandwidth requirements and optimize available HDD storage. This allows users to efficiently manage surveillance recordings while maintaining reliable video performance.

For video monitoring and playback, the recorder supports decoding capabilities of up to 2 channels at 4MP or 4 channels at 1080p resolution. This provides clear video monitoring and flexible playback options for connected IP cameras.

The DS-7104NI-Q1/4P includes one SATA interface supporting up to 6TB HDD capacity, providing reliable local storage for surveillance recordings. It also features a self-adaptive 10/100 Mbps Ethernet interface for stable network connectivity.

With built-in PoE functionality, efficient H.265+ compression, high-definition decoding, and reliable storage support, the Hikvision DS-7104NI-Q1/4P 4 Port PoE NVR is an excellent choice for users looking for a simple and efficient IP surveillance solution.

Key Features

• Built-in PoE Ports – Simplifies IP camera installation with power and network transmission through one cable.
• 4 Port NVR – Supports up to 4 compatible IP cameras.
• Plug-and-Play Installation – Provides convenient setup for PoE IP camera systems.
• H.265+ Video Compression – Helps reduce bandwidth and storage requirements.
• 4MP Video Decoding – Supports up to 2 channels at 4MP resolution.
• 1080p Video Decoding – Supports up to 4 channels at Full HD resolution.
• Up to 6TB HDD Storage – Supports reliable local surveillance recording.
• 10/100 Mbps Ethernet Interface – Provides stable network connectivity.

Main Specifications

Model: DS-7104NI-Q1/4P
NVR Type: 4 Port PoE Network Video Recorder
PoE: Built-in PoE Ports
Video Compression: H.265+ / H.265 / H.264+ / H.264
Decoding Capability: 2-ch @ 4MP / 4-ch @ 1080p
Storage: 1 SATA Interface, up to 6TB HDD
Network Interface: 1 × Self-Adaptive 10/100 Mbps Ethernet
Application: Home, Office, Shop & Small Business Surveillance
