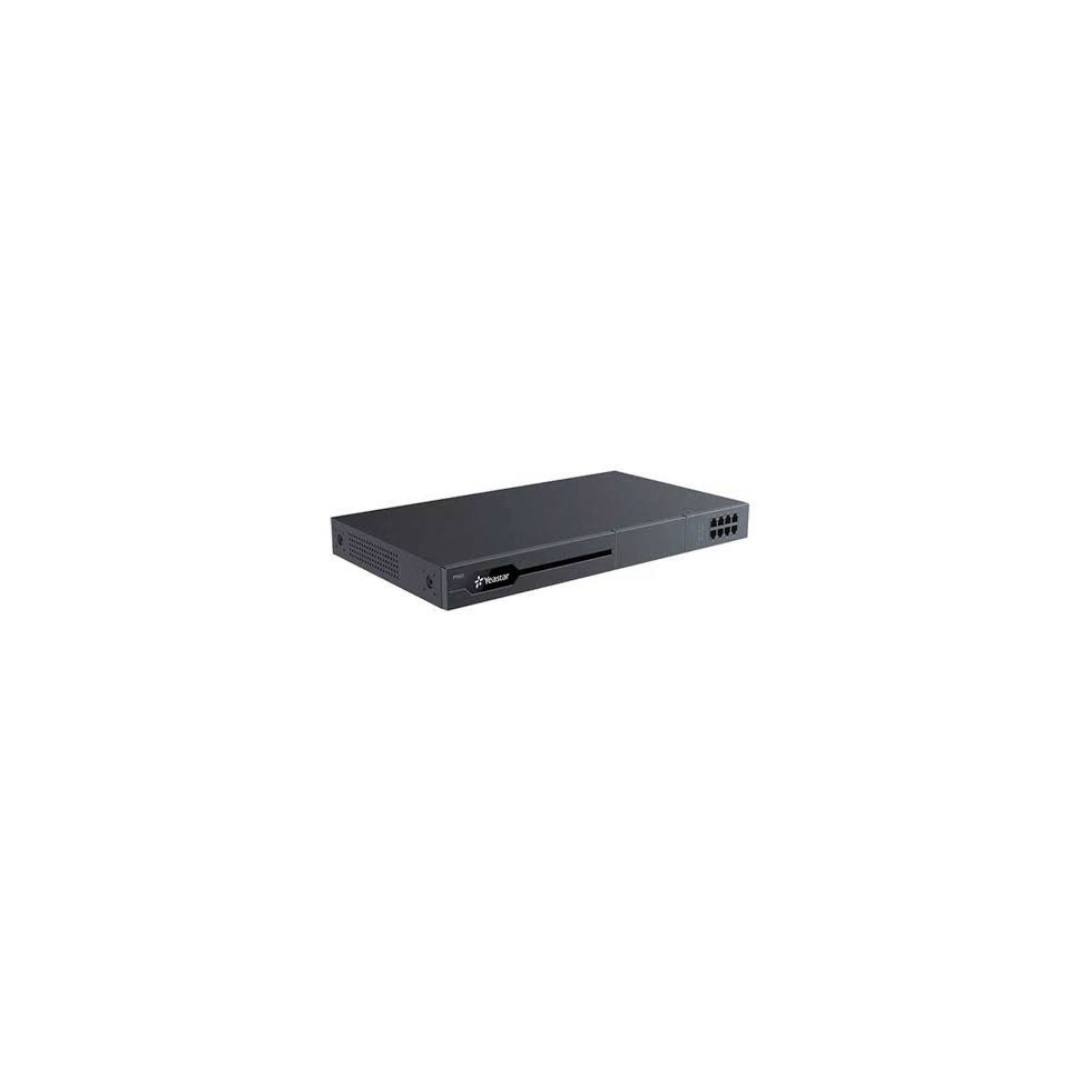

Yeastar P560 IP PBX Phone System

The Yeastar P560 IP PBX Phone System is designed for growing small and medium-sized businesses that require a scalable business communication system. It combines IP telephony with unified communication features, allowing businesses to manage voice calls, messaging, collaboration, and other communication services through a centralized platform.

The Yeastar P560 supports up to 100 users and 30 concurrent calls as standard, with the capacity expandable to 200 users and 60 concurrent calls using a compatible DSP expansion module. Its modular hardware architecture provides flexible options for analog FXS/FXO ports, BRI channels, E1/T1/PRI connectivity, and cellular trunking.

The P560 also supports Linkus UC applications, call center features, IVR, call queue management, and call recording. Its network connectivity and modular design make it suitable for businesses that need an IP PBX system that can adapt to changing communication requirements.

Main Features

• 100 User Capacity: Supports up to 100 users as standard for business telephone communication.
• Expandable to 200 Users: User capacity can be expanded up to 200 users with a compatible DSP expansion module.
• 30 Concurrent Calls: Supports up to 30 simultaneous calls as standard.
• Expandable to 60 Concurrent Calls: Concurrent call capacity can be expanded up to 60 calls with the appropriate expansion module.
• Flexible Analog Connectivity: Supports up to 8 FXS/FXO analog ports through compatible expansion modules.
• BRI Connectivity: Supports up to 8 BRI channels for compatible digital telephony connections.
• E1/T1/PRI Support: Provides support for up to 1 E1/T1/PRI port through compatible hardware expansion.
• Unified Communications: Supports Linkus UC applications for mobile, desktop, and web-based business communication.
• Call Center and IVR Features: Provides call queue management, call center functions, Interactive Voice Response, and automated call handling.
• Modular and Scalable Design: Provides configurable hardware options for businesses with different telephony and communication requirements.

Main Specifications

• Model Name: Yeastar P560 IP PBX
• System Type: P-Series IP PBX Phone System
• Extension Capacity: 100 users, expandable up to 200 users
• Concurrent Call Capacity: 30 concurrent calls, expandable up to 60 calls
• Maximum Analog Ports: Up to 8 FXS/FXO ports
• Maximum BRI Capacity: Up to 8 BRI channels
• Maximum E1/T1/PRI Capacity: 1 E1/T1/PRI port
• Maximum Cellular Capacity: Up to 4 GSM/3G/4G LTE channels
• Network Interfaces: 2 × 10/100/1000 Mbps Gigabit Ethernet RJ45 ports
• Storage and USB: 1 × USB 2.0 port supporting external storage up to 2TB and 1 × SD card slot supporting up to 256GB
• Physical Dimensions and Weight: 440 × 252 × 44 mm (L × W × H); 1U rack-mountable; net weight 2.37 kg
