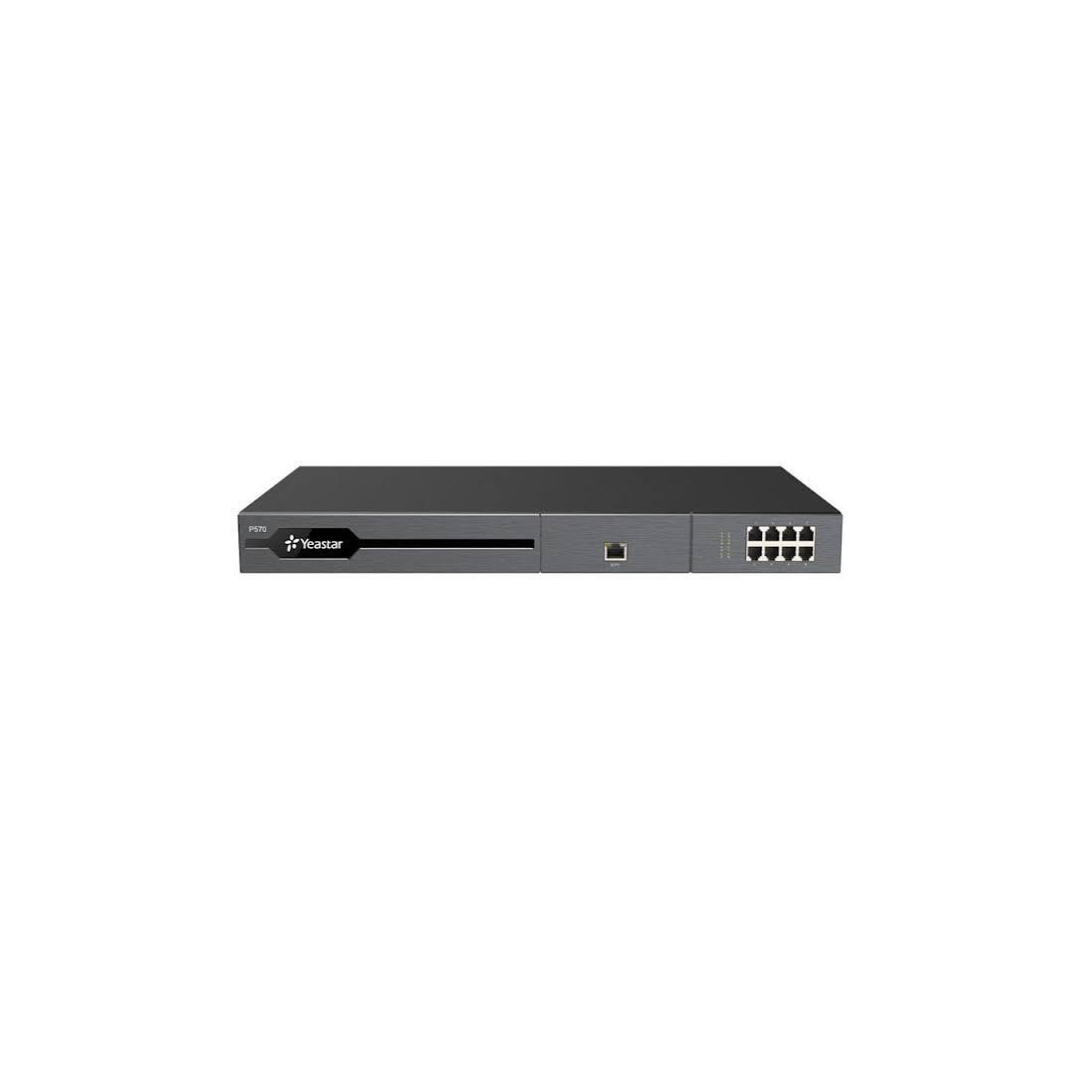

Yeastar P570 VoIP PBX Phone System

The Yeastar P570 VoIP PBX Phone System is designed for businesses that require a scalable and centralized IP PBX solution. It combines business telephony with unified communication features, providing a platform for managing voice calls, collaboration, messaging, and other business communication requirements.

The Yeastar P570 supports up to 300 users and 60 concurrent calls as standard. With compatible D30 expansion modules, the system can be expanded to support up to 500 users and 120 concurrent calls, making it suitable for growing organizations with higher communication requirements.

Its modular hardware architecture provides flexible connectivity options, including up to 16 FXS/FXO analog ports, up to 16 BRI channels, up to 2 E1/T1/PRI ports, and cellular connectivity through compatible modules. The P570 also supports Linkus UC clients for Windows, Mac, Android, iOS, and web browsers.

Main Features

• 300 User Capacity: Supports up to 300 users as standard for business communication.
• Expandable to 500 Users: User capacity can be expanded up to 500 users using compatible D30 expansion modules.
• 60 Concurrent Calls: Supports up to 60 simultaneous calls as standard.
• Expandable to 120 Concurrent Calls: Concurrent call capacity can be expanded up to 120 calls with compatible expansion modules.
• Cross-Platform Linkus UC: Supports Linkus UC clients across Windows, Mac, Android, iOS, and web browsers.
• 16 FXS/FXO Analog Ports: Supports up to 16 FXS/FXO analog ports through compatible expansion hardware.
• 16 BRI Channels: Supports up to 16 BRI channels for compatible digital telephony connections.
• E1/T1/PRI Connectivity: Supports up to 2 E1/T1/PRI ports through compatible expansion hardware.
• Call Center and IVR Features: Provides call queue management, Interactive Voice Response, automated attendant, and call center functionality.
• Modular and Secure Design: Provides expandable hardware connectivity together with network and voice security features such as firewall and TLS/SRTP support.

Main Specifications

• Model Name: Yeastar P570 IP PBX
• System Type: P-Series VoIP PBX Phone System
• Extension Capacity: 300 users, expandable up to 500 users
• Concurrent Call Capacity: 60 concurrent calls, expandable up to 120 calls
• Maximum Analog Ports: Up to 16 FXS/FXO ports
• Maximum BRI Capacity: Up to 16 BRI channels
• Maximum E1/T1/PRI Capacity: Up to 2 E1/T1/PRI ports
• Maximum Cellular Capacity: Up to 6 GSM/3G/4G LTE channels
• Network Interfaces: 2 × 10/100/1000 Mbps Gigabit Ethernet RJ45 ports
• Storage Interfaces: 1 × USB 2.0 port supporting external storage up to 2TB and 1 × SD card slot supporting up to 256GB
• Physical Dimensions and Weight: 440 × 252 × 44 mm (L × W × H); 1U rack-mountable; net weight 2.5 kg
