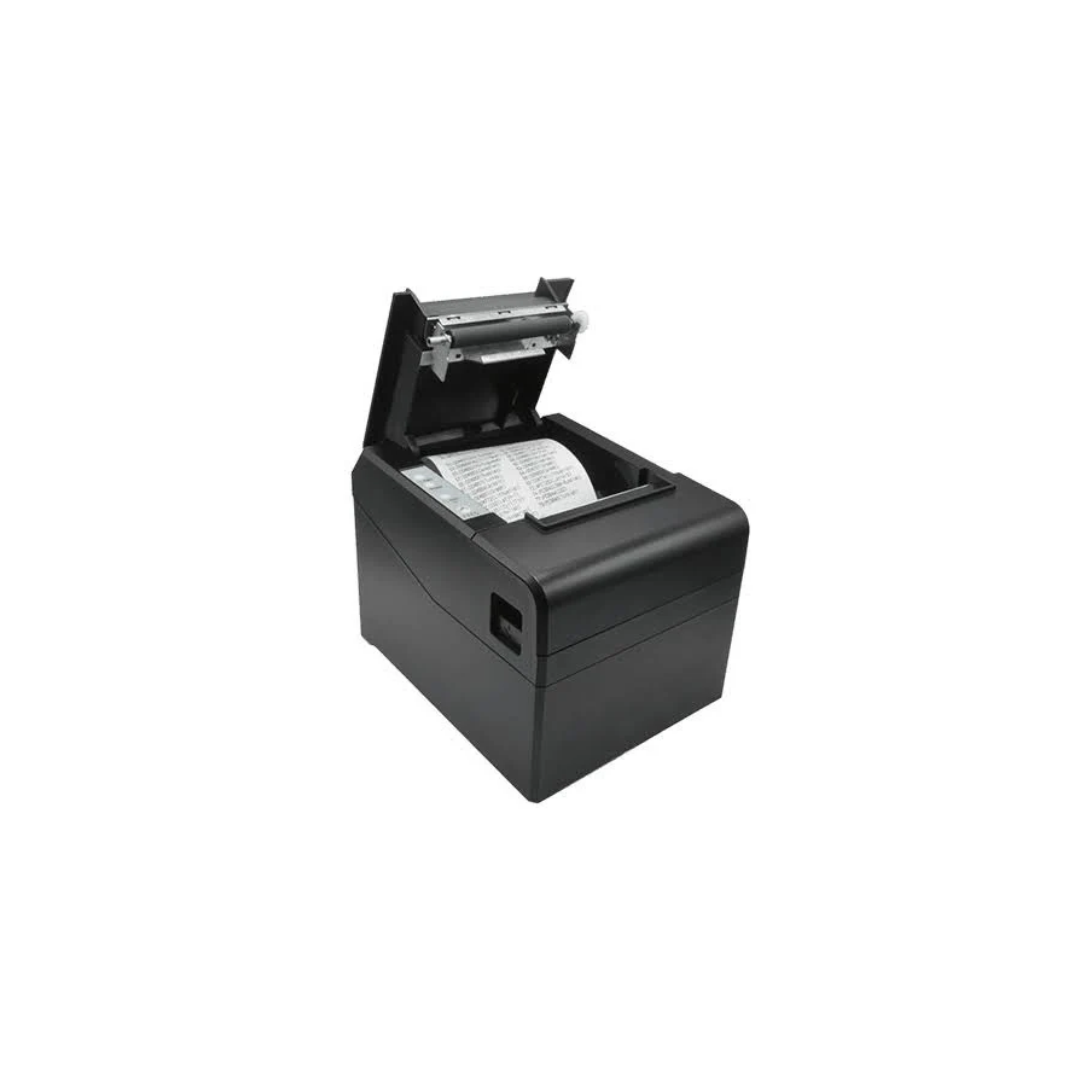

ZKP 8016 Thermal Printers 80MM

The ZKP8016 Thermal Receipt Printer delivers high-speed receipt printing for retail POS counters, food service order stations, and ticketing desks. Using direct thermal printing technology, it produces clear receipts without requiring ink cartridges or replacement ribbons.

The ZKP8016 features a lightweight design and built-in data buffer memory for continuous print processing. Its thermal print head is rated for up to 150 km, while the automatic cutter supports full and partial cuts with a rated life of up to 1.5 million cuts, making it suitable for busy POS environments.

Key Features

• High-Speed Direct Thermal Printing: Prints receipts at speeds of up to 230mm/s for efficient transaction processing.
• Built-In Data Buffer: Receives and manages print instructions while printing to support continuous operation.
• Long-Life Auto-Cutter: Supports full and partial cuts with a rated lifespan of up to 1.5 million cuts.
• USB & LAN Connectivity: Provides USB and Ethernet RJ45 interfaces for local and network POS setups.
• Ribbon-Free Printing: Direct thermal technology eliminates the need for ink cartridges and ribbons.
• Bitmap & Graphic Printing: Supports NV pictures, logos, and variable-density bitmap graphics.
• ESC/POS Support: Compatible with standard ESC/POS command protocols for POS software integration.
• Cash Drawer Interface: Includes an RJ11 cash drawer port with DC 24V/1A output.
• 1D Barcode Printing: Supports common 1D barcode formats including CODE128, CODE39, EAN13, EAN8, and UPC-A/E.
• Long-Life Thermal Print Head: Features a thermal print head rated for up to 150 km of printing.

Specifications

• Model Name: ZKTeco ZKP8016 POS Thermal Receipt Printer
• Print Technology: Direct Thermal Line Printing
• Print Speed: Up to 230mm/s
• Thermal Print Head Life: 150 km
• Supported Paper Width: 79.5mm ± 0.5mm
• Effective Print Width: 72mm
• Maximum Roll Diameter: 80mm
• Communication Interfaces: USB + LAN (Ethernet RJ45)
• Cash Drawer Port: DC 24V / 1A Output
• Power Supply: External Power Adapter (DC 24V / 2.5A)
• Dimensions & Weight: 130.2 × 167 × 131.5mm (L × W × H); Net Weight: 1.5kg
