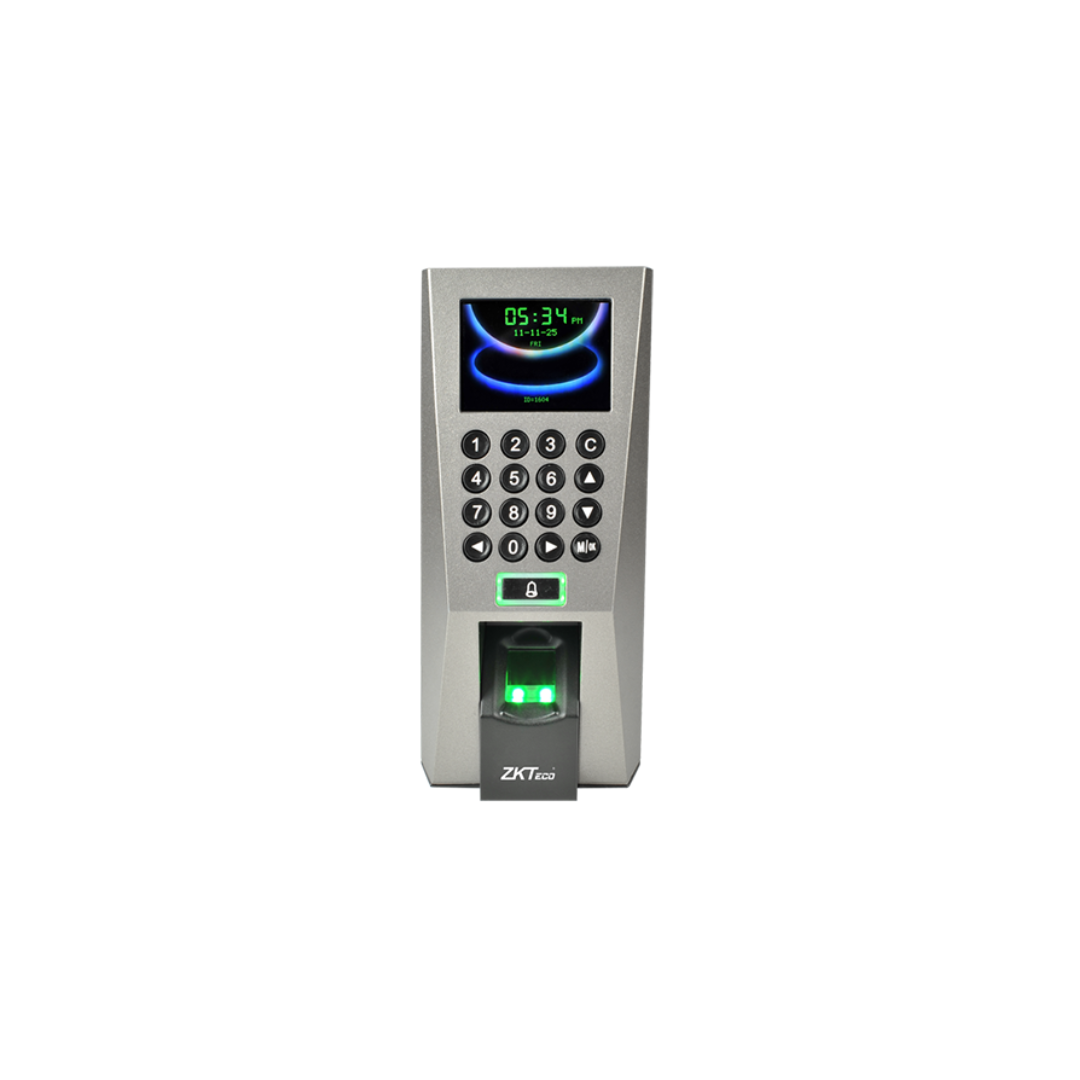

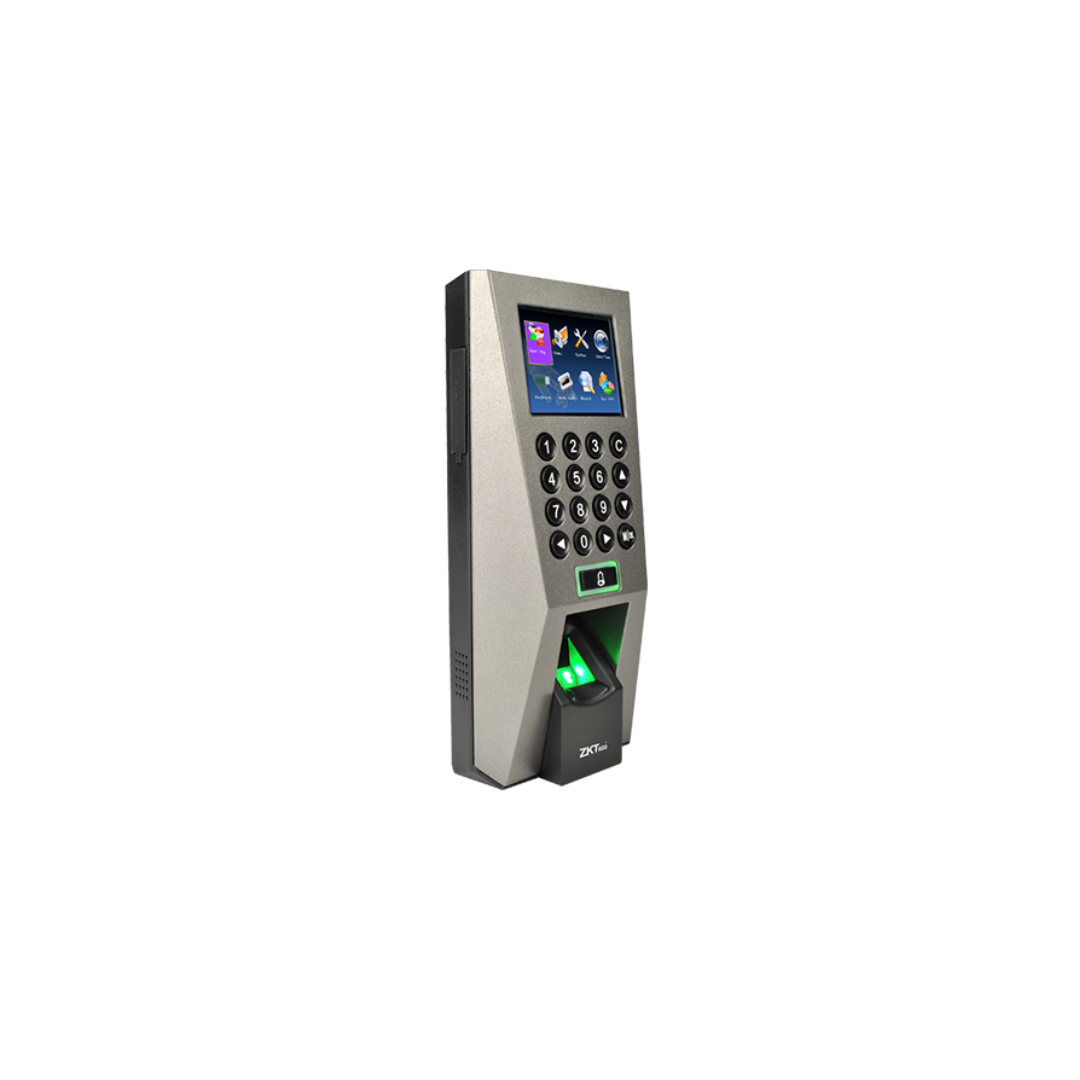

ZKTeco F 18 (Without Adopter)

The ZKTeco F18 Access Control Terminal is designed for biometric fingerprint-based time attendance and door access management. Its compact design makes it suitable for installations where available wall or door-frame space is limited.

The F18 features a 2.4-inch TFT color display that provides graphical menus, user prompts, and fingerprint image feedback during verification. It can operate as a standalone access control terminal or work as a reader connected to compatible third-party access control systems through Wiegand.

For network and data communication, the terminal supports TCP/IP, RS232/RS485, and USB. It also provides access control interfaces for electric locks, door sensors, exit buttons, alarms, and external doorbells. Optional RFID functionality provides an additional authentication method where supported by the specific device configuration.

Note: This product is supplied without a power adapter. A compatible DC 12V power supply is required for operation.

Main Features

• Fingerprint Verification: Uses an optical fingerprint sensor for biometric user authentication.
• 2.4-Inch Color Display: TFT LCD provides fingerprint image feedback, graphical menus, and user prompts.
• Compact Design: Slim enclosure is suitable for narrow door frames and space-limited installations.
• Standalone & Slave Operation: Can operate independently or connect to compatible access control systems through Wiegand.
• Optional RFID Verification: Supports optional ID or MIFARE card authentication depending on device configuration.
• Access Control Relay: Provides connections for compatible electric door locks and related access control hardware.
• Wiegand In/Out: Supports Wiegand communication for integration with external readers or access controllers.
• Network & USB Connectivity: Supports TCP/IP, RS232/RS485, and USB for communication and data management.
• Security Functions: Supports anti-passback and tamper switch functions for access control applications.
• Audio-Visual Feedback: Provides display and audio prompts to indicate verification status.

Main Specifications

• Model: ZKTeco F18
• Product Type: Biometric Fingerprint Access Control & Time Attendance Terminal
• Display: 2.4-inch TFT LCD Color Screen
• Fingerprint Capacity: 3,000 fingerprint templates
• Card Capacity: 5,000 ID cards; MIFARE card support optional
• Transaction Capacity: 30,000–100,000 records, depending on firmware
• Verification Speed: Under 1.0 second
• Communication: TCP/IP Ethernet, RS232/RS485, USB 2.0 Host
• Access Control & Wiegand: Electric Lock, Door Sensor, Exit Button, Alarm, External Doorbell; Wiegand In/Out
• Power & Dimensions: DC 12V / 3A; 80 × 183 × 42 mm (W × H × D); Power Adapter Not Included
