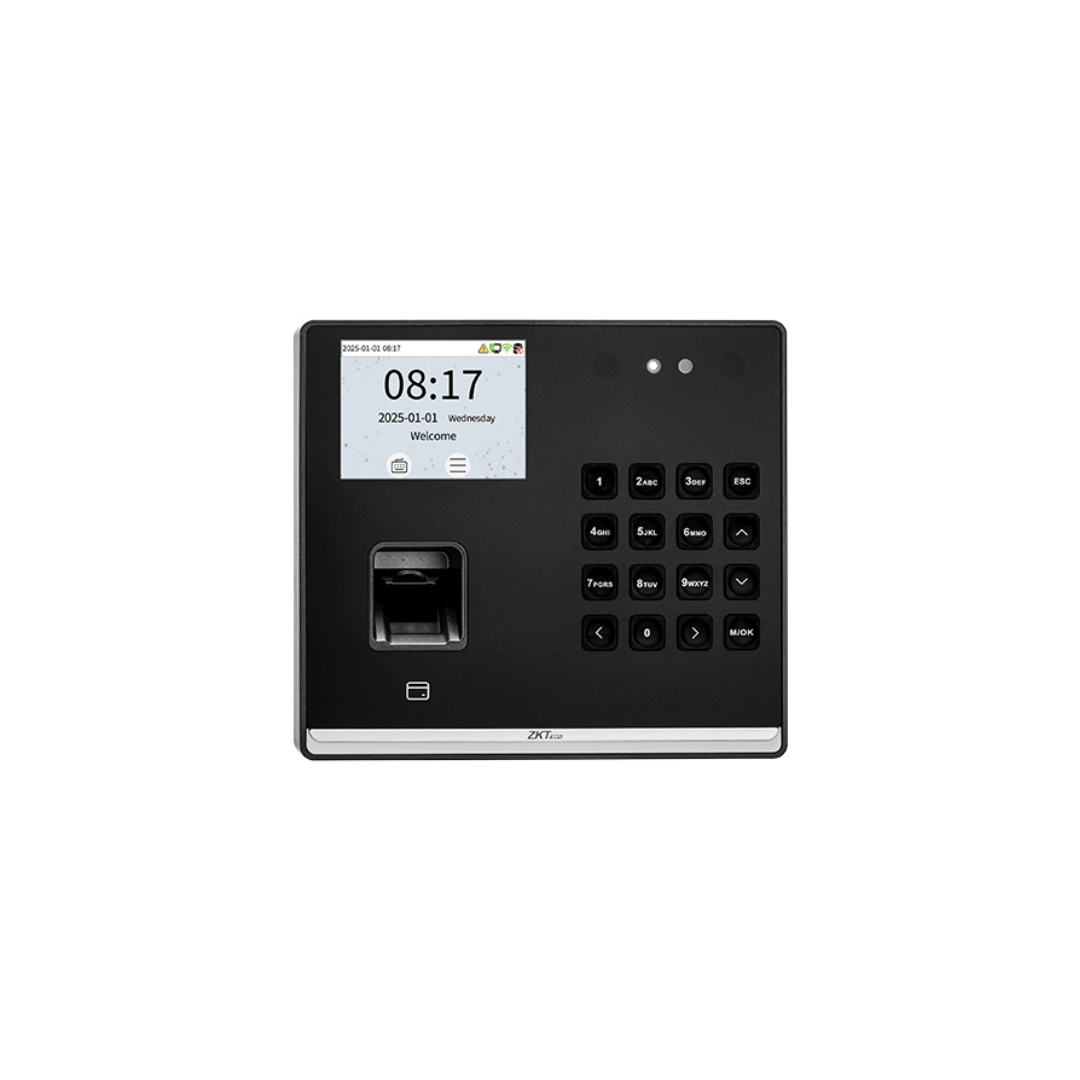

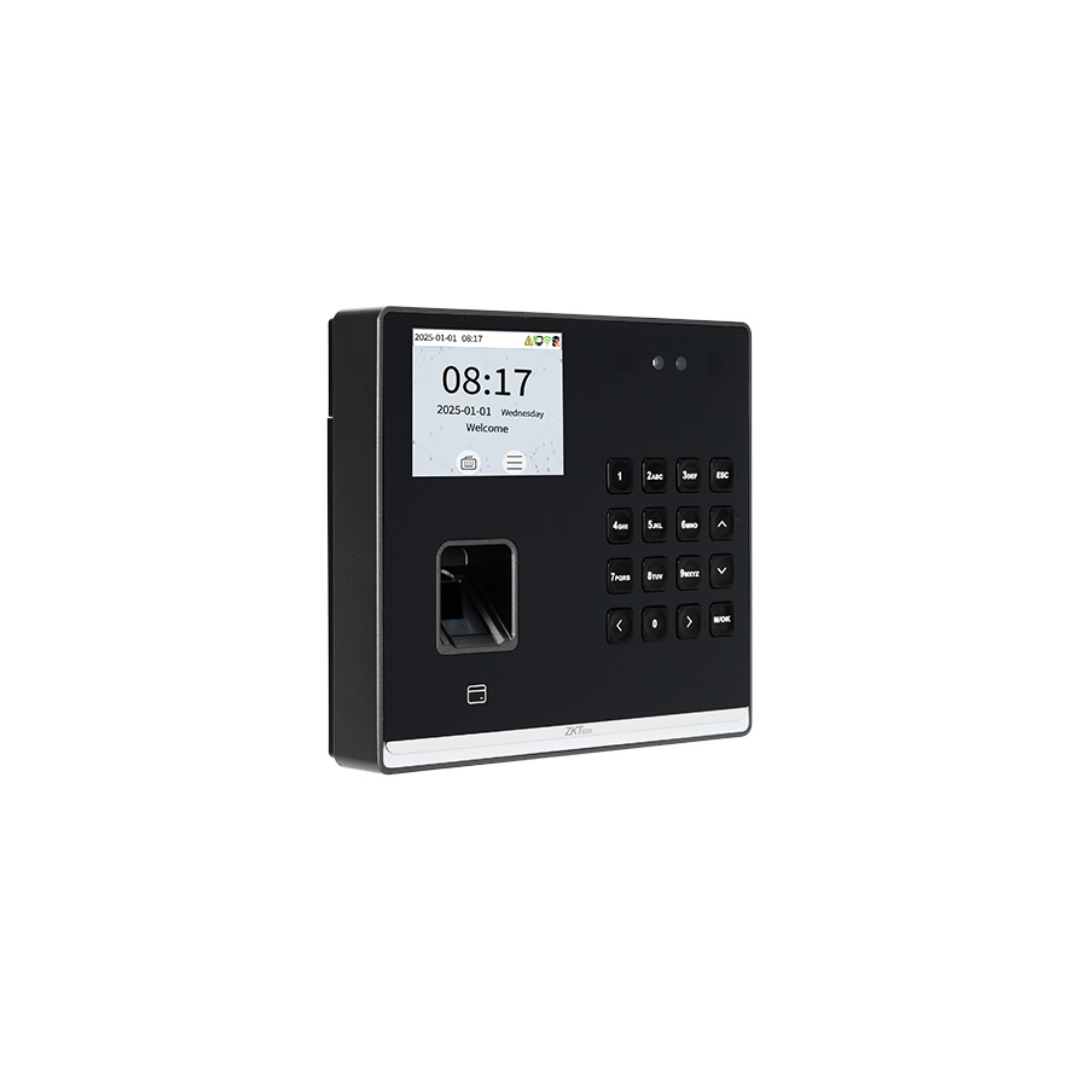

ZKTeco M2F-PRO LR Attendance Device Facial

The ZKTeco M2F-PRO LR Attendance Device combines facial recognition and fingerprint verification for employee time attendance and access control. It also supports ID/IC cards and password authentication for flexible user verification.

The terminal features a 2.8-inch TFT color LCD and supports TCP/IP, Wi-Fi, and USB connectivity for attendance data management. It can also connect with third-party electric locks, door sensors, and exit buttons for basic access control applications.

Main Features

• Visible light facial recognition
• Fingerprint, card, and password verification
• 1MP binocular camera with supplement light
• 2.8-inch TFT color LCD display
• TCP/IP Ethernet connectivity
• 2.4GHz Wi-Fi connectivity
• USB 2.0 Type-A data transfer
• Third-party electric lock, door sensor, and exit button support
• Automatic Check-In, Check-Out, Break-In, and Break-Out status switching
• Optional 2,000mAh rechargeable backup battery

Main Specifications

• Model: ZKTeco M2F-PRO LR
• Operating System: Linux
• Processor: Dual-Core 1GHz
• Display: 2.8-inch TFT Color LCD
• Resolution: 320 × 240
• Facial Capacity: 500 templates
• Fingerprint Capacity: 1,000 templates
• Transaction Capacity: 150,000 records
• Communication: TCP/IP, 2.4GHz Wi-Fi, USB 2.0 Type-A
• Power & Dimensions: DC 12V / 3A; 154 × 138 × 34 mm; 0.43 kg
