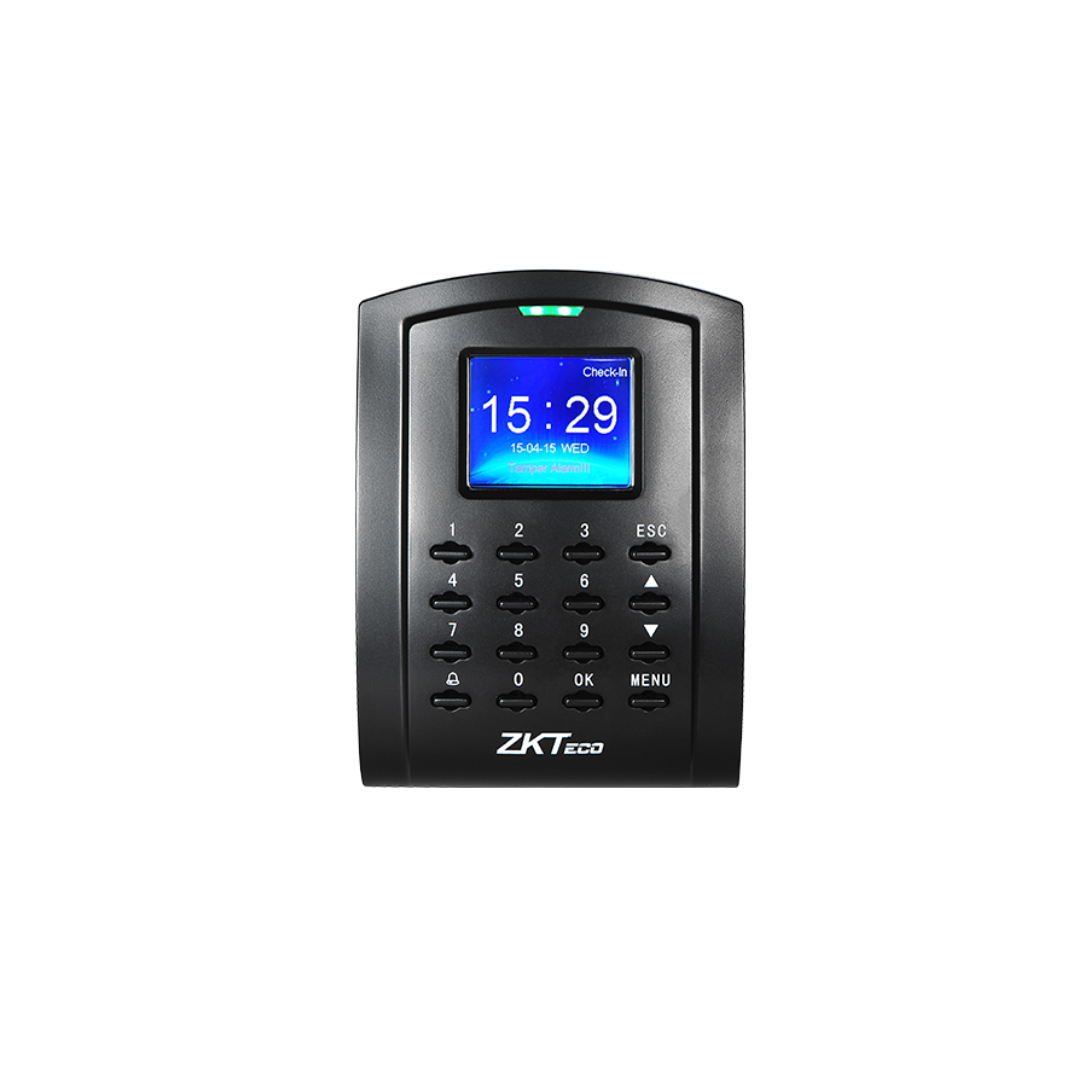

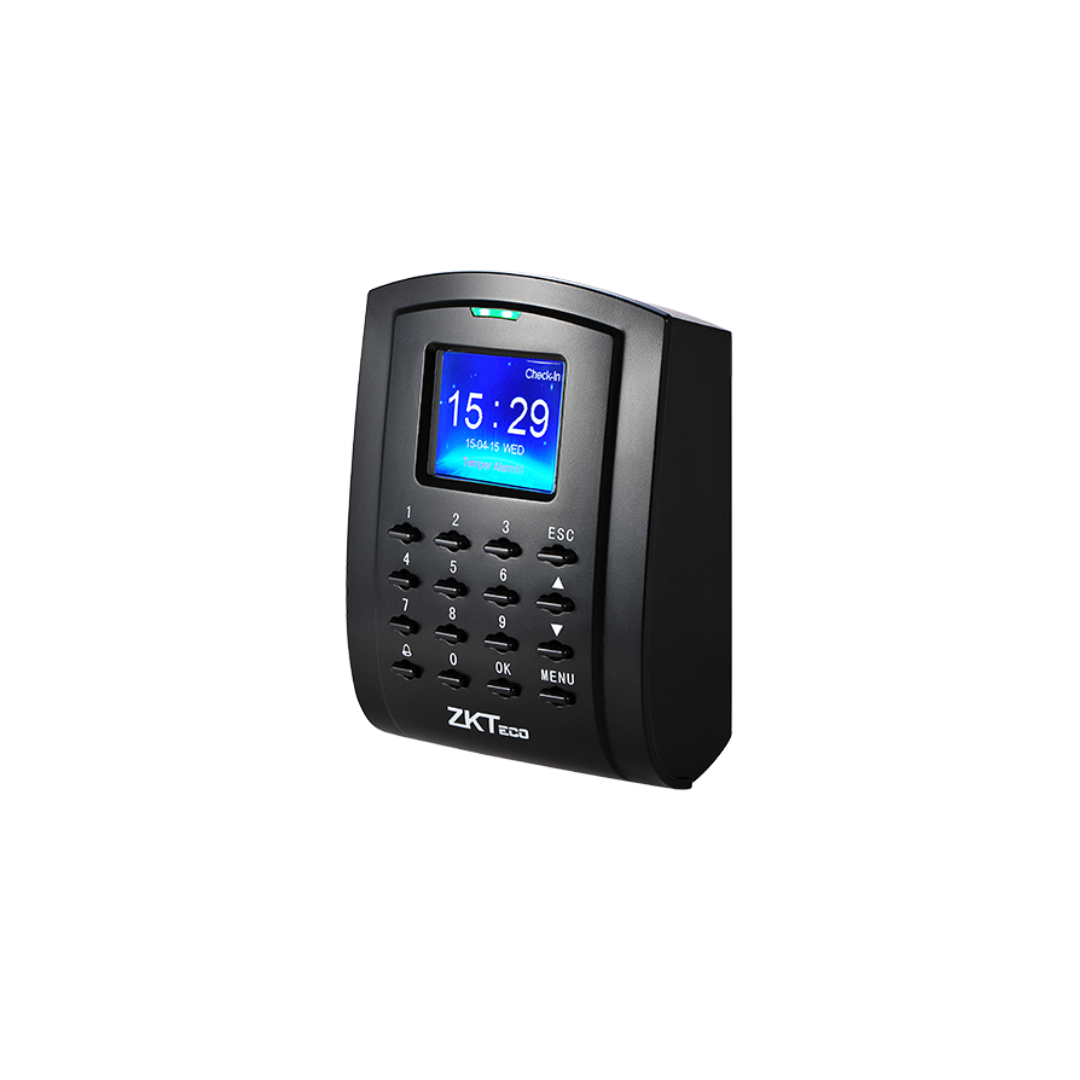

ZKTeco SC 105 (Without Adopter)

The ZKTeco SC105 Access Control Terminal is designed for RFID-based time attendance and door access management. Its 2.0-inch TFT color display and graphical user interface provide convenient access to device settings, user management, and attendance information.

The SC105 supports 125kHz RFID card verification and PIN authentication, allowing users to access authorized areas using cards or passwords. It can operate as a standalone terminal while also supporting network-based management through TCP/IP Ethernet.

For access control integration, the terminal provides connections for electric door locks, door sensors, exit buttons, alarms, and Wiegand-compatible devices. Its USB 2.0 Host interface can be used for data transfer and offline management.

Note: This product is supplied without a power adapter. A compatible DC 12V power supply is required for operation.

Main Features

• RFID Card Verification: Supports 125kHz proximity ID cards for convenient access authentication.
• PIN Verification: Physical keypad allows users to authenticate using authorized PIN passwords.
• 2.0-Inch TFT Color Display: Provides clear visual information and graphical menu navigation.
• Standalone Operation: Can manage access control functions without requiring a continuous PC connection.
• TCP/IP Connectivity: Supports network communication for centralized device and attendance management.
• USB Data Transfer: USB 2.0 Host interface supports offline data transfer using a compatible USB drive.
• Access Control Interfaces: Supports electric locks, door sensors, exit buttons, and alarm connections.
• Wiegand Output: Enables connection with compatible external access control panels and devices.
• Access Management Functions: Supports user groups, time zones, holiday settings, and configurable access rules.
• Audio-Visual User Prompts: Provides display and audio indications for successful or unsuccessful verification.

Main Specifications

• Model: ZKTeco SC105
• Product Type: RFID Time Attendance & Access Control Terminal
• Display: 2.0-inch TFT Color Display
• Card Capacity: Up to 30,000 ID cards
• Transaction Capacity: Up to 80,000 event records
• Verification Speed: Under 1.0 second
• Card Technology: 125kHz Proximity ID Card
• Communication: TCP/IP Ethernet, USB 2.0 Host
• Access Control & Wiegand: Electric Lock, Door Sensor, Exit Button, Alarm Output, Wiegand Output
• Power & Environment: DC 12V / 3A; 0°C to 45°C; 20% to 80% RH, non-condensing; Power Adapter Not Included
