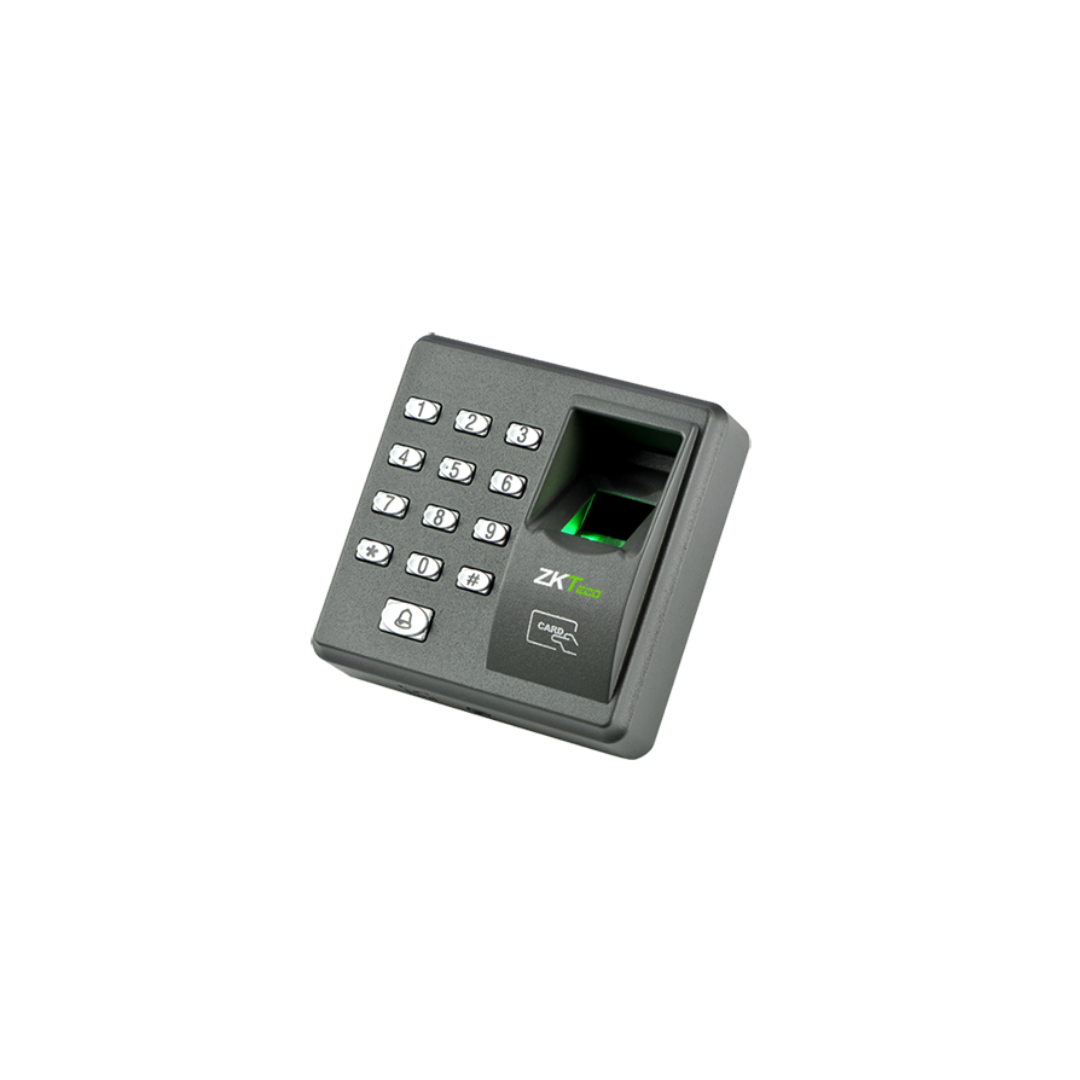

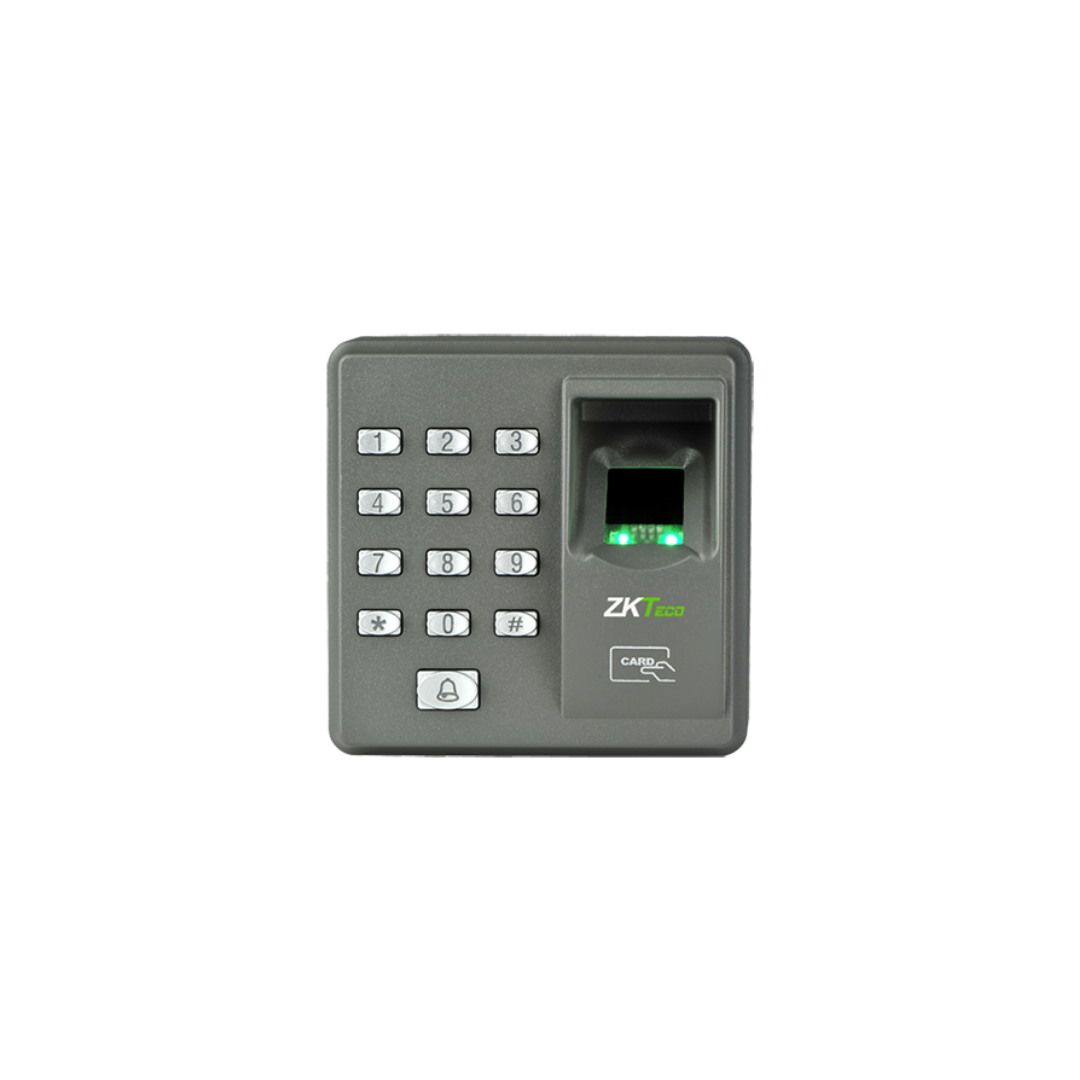

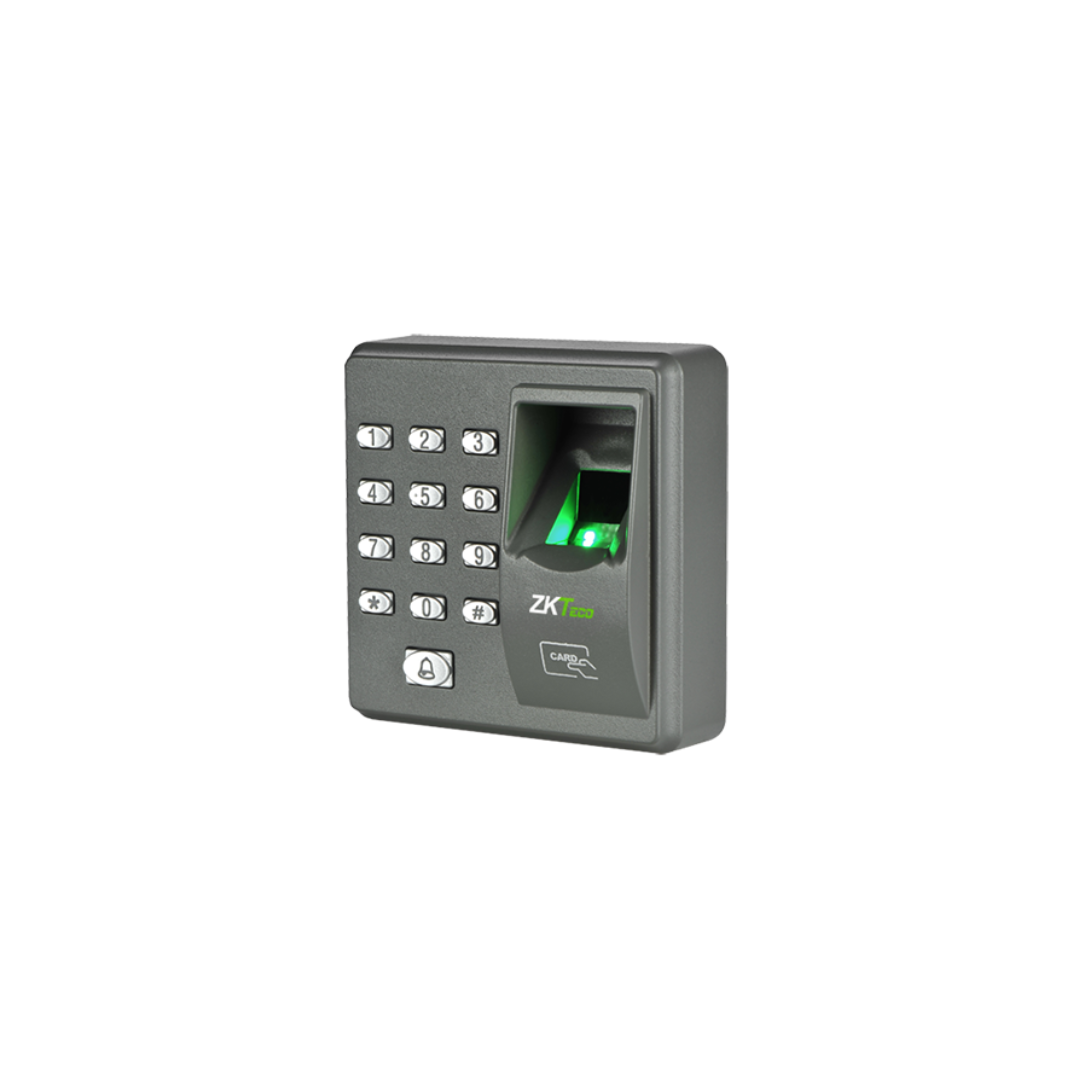

ZKTeco X7 (Without Adopter)

The ZKTeco X7 (Without Adopter) is a standalone biometric access control device designed for secure and convenient door entry management. It supports fingerprint, RFID proximity card, and PIN password verification, allowing users to unlock authorized doors without requiring a PC or network connection.

The X7 features an integrated optical fingerprint sensor and mechanical keypad for user enrollment and device administration. Authorized users can be managed directly through the terminal, making it suitable for standalone installations where simple access management is required.

The device provides direct interfaces for electric locks, exit buttons, door sensors, alarms, and external doorbells. Its compact design makes it suitable for offices, storage areas, server rooms, and other controlled-access locations.

Note: This product is supplied without a power adapter. A compatible DC 12V power supply is required for operation.

10 Main Features

• Standalone Access Control: Operates independently without requiring a PC, network connection, or external controller.
• Fingerprint Verification: Uses an optical fingerprint sensor for biometric user authentication.
• RFID Card Verification: Supports 125kHz proximity ID cards for convenient access.
• PIN Password Verification: Mechanical keypad allows users to enter authorized PIN codes.
• Direct User Management: Supports user enrollment and deletion directly from the terminal.
• Electric Lock Support: Provides relay connections for compatible electric door locks.
• Door Sensor & Exit Button: Supports door status monitoring and exit button connections.
• Tamper Alarm: Built-in tamper switch provides an alarm output when the device is forcibly removed.
• Doorbell Support: Dedicated doorbell button allows connection to a compatible external doorbell system.
• Compact Design: Compact wall-mounted enclosure is suitable for various controlled-entry locations.

10 Main Specifications

• Model: ZKTeco X7
• Product Type: Standalone Biometric Access Control Terminal
• User & Biometric Capacity: 500 fingerprint templates / 500 ID cards
• Fingerprint Sensor: ZK Optical Fingerprint Sensor
• Card Reader: 125kHz Proximity ID Card Reader
• Keypad: 3 × 4 Mechanical Numeric Keypad with Dedicated Doorbell Key
• Access Control Interfaces: Electric Lock Relay, Door Sensor, Exit Button, Alarm, External Doorbell
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 20% to 80% RH, non-condensing
• Power & Dimensions: DC 12V / 3A; 88 × 88 × 35 mm (W × H × D); Power Adapter Not Included
