DS-7104NI-Q1/M (4-Port)

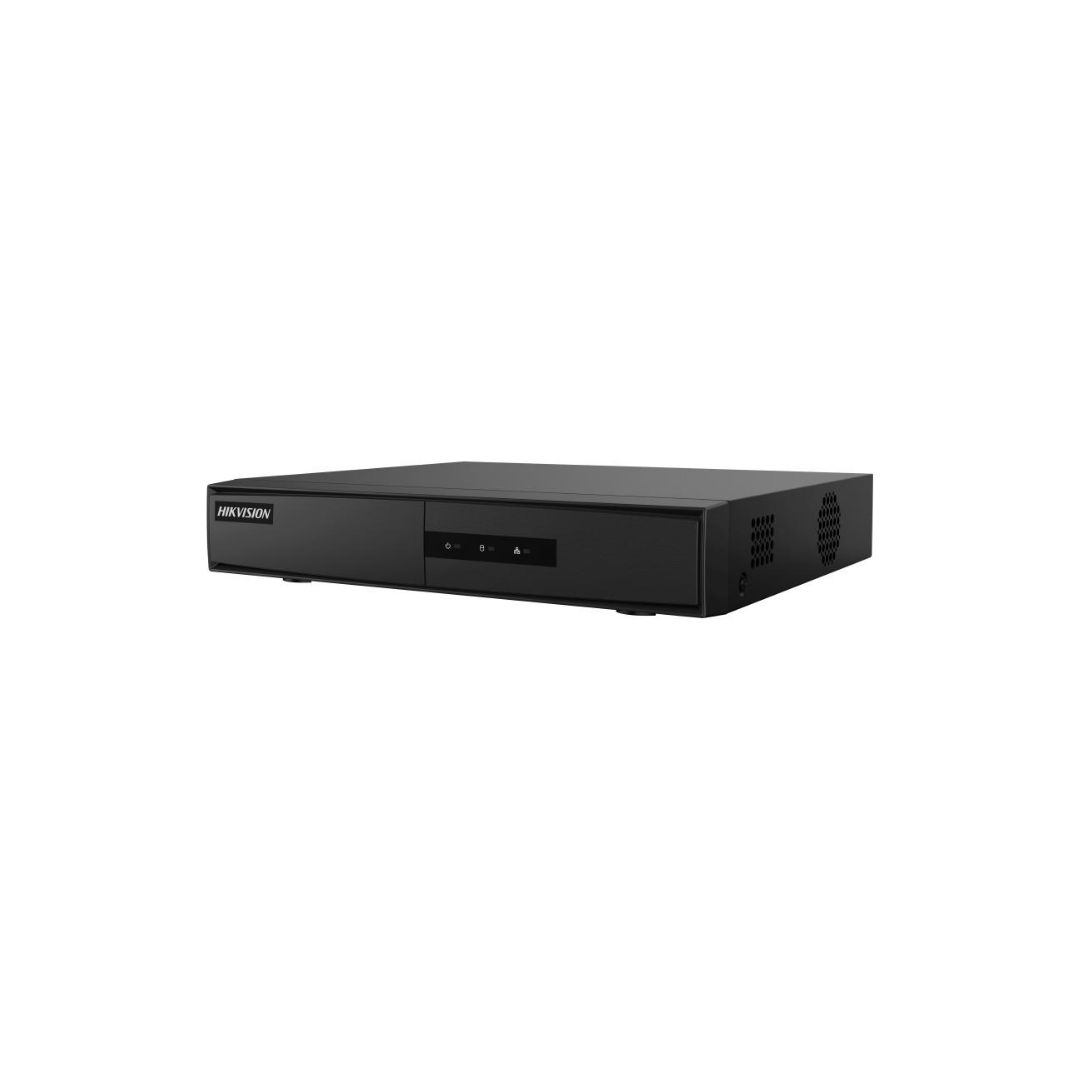

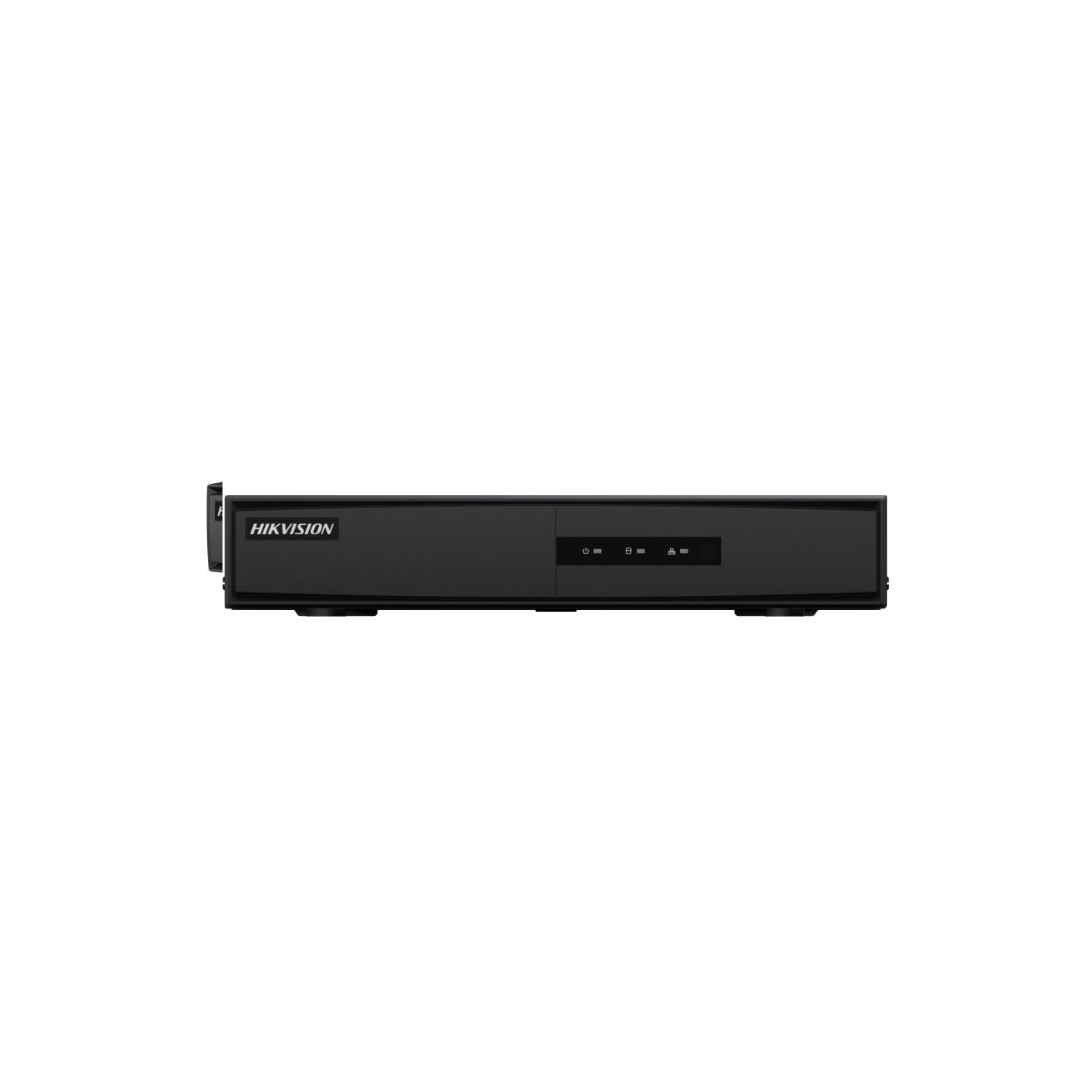

The Hikvision DS-7104NI-Q1/M 4 Port NVR is a compact and efficient solution for managing IP-based security cameras. Designed for homes, offices, retail stores, and small business applications, it supports up to 4 network cameras and delivers reliable video recording and monitoring.

Supporting IP cameras with resolutions of up to 6MP, this network video recorder helps capture clear and detailed surveillance footage. Advanced H.265+, H.265, H.264+, and H.264 compression technologies help optimize storage space and reduce network bandwidth requirements.

With up to 40 Mbps incoming bandwidth, the recorder provides stable connectivity for supported IP cameras. It also offers simultaneous HDMI and VGA video output with display resolutions up to 1920 × 1080p, allowing convenient local monitoring.

The device supports multi-channel decoding and synchronous playback, making it easier to monitor and review recorded video footage. For local recording, it includes one SATA interface supporting up to 6TB HDD capacity.

The Hikvision DS-7104NI-Q1/M 4 Channel NVR also supports Hik-Connect remote access, allowing users to conveniently manage and monitor their surveillance system through a network connection. Its compact Mini 1U design, efficient compression, and reliable recording capabilities make it an excellent choice for small IP surveillance installations.

Key Features

• 4 IP Camera Channels – Supports up to four network cameras.
• Up to 6MP Resolution – Supports high-quality IP camera recording.
• H.265+ Video Compression – Helps reduce storage and bandwidth usage.
• 40 Mbps Incoming Bandwidth – Supports efficient camera data transmission.
• HDMI and VGA Output – Enables simultaneous local video monitoring.
• Up to 1080p Display Output – Provides clear Full HD video display.
• Up to 6TB HDD Support – Provides reliable local video storage.
• Hik-Connect Remote Access – Supports convenient remote monitoring.

Main Specifications

Model: DS-7104NI-Q1/M
Channels: 4 IP Camera Channels
Maximum Resolution: Up to 6MP
Incoming Bandwidth: Up to 40 Mbps
Compression: H.265+ / H.265 / H.264+ / H.264
Video Output: HDMI & VGA up to 1920 × 1080p
Storage: 1 SATA Interface, up to 6TB HDD
Remote Access: Hik-Connect
