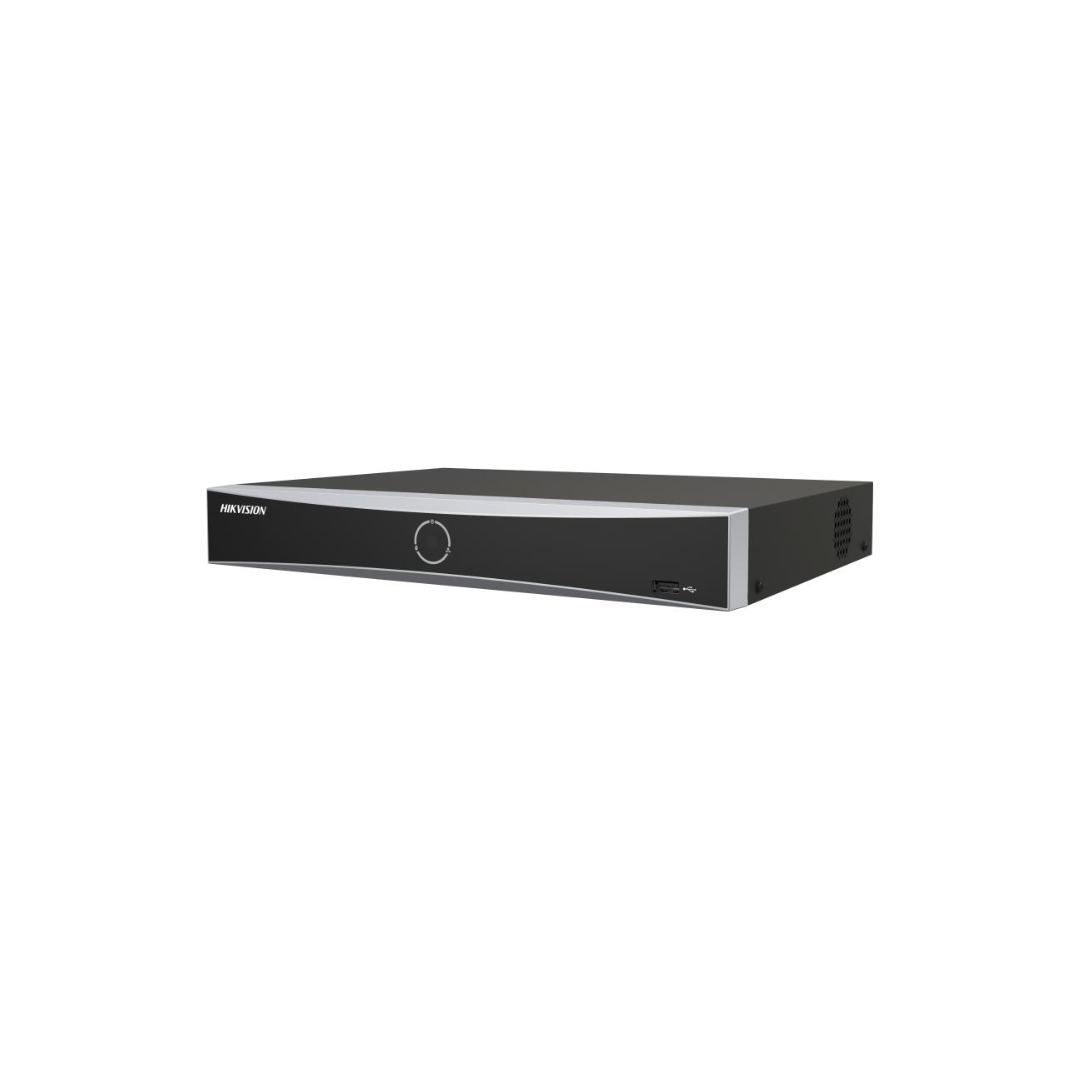

DS-7616NXI-I2/S (16-Port) NVR

The Hikvision DS-7616NXI-I2/S 16-Port NVR is a professional network video recorder designed for reliable IP surveillance recording, monitoring, playback, and management. It supports up to 16 IP camera inputs and provides up to 160 Mbps incoming bandwidth for handling multiple high-resolution video streams.

The NVR supports H.265+, H.265, H.264+, and H.264 video compression and provides advanced features such as AcuSense, facial recognition, perimeter protection, Motion Detection 2.0, smart search, and smart playback. It also supports 4K HDMI output and features 2 SATA interfaces for HDD storage.

Key Features

16-Port IP Camera Support – Supports up to 16 IP camera inputs.
160 Mbps Incoming Bandwidth – Supports high-bandwidth IP video transmission.
H.265+ Compression – Helps reduce storage space and bandwidth requirements.
High-Resolution Recording – Supports high-resolution recording with compatible IP cameras.
32-Ch @ 1080p Decoding – Supports up to 32-channel 1080p decoding when AI by NVR is disabled.
AcuSense Technology – Provides intelligent video analysis and human/vehicle classification.
Facial Recognition – Supports facial recognition functions for surveillance applications.
Perimeter Protection – Supports intelligent perimeter security functions.
4K HDMI Output – Provides high-resolution display output up to 4K.
Dual SATA Storage – Features 2 SATA interfaces for HDD installation.

Main Specifications

Model: DS-7616NXI-I2/S
NVR Type: 16-Channel 1U AcuSense NVR
IP Camera Inputs: Up to 16 channels
Incoming Bandwidth: Up to 160 Mbps
Video Compression: H.265+ / H.265 / H.264+ / H.264
Recording Resolution: Up to 32 MP
Decoding Capacity: Up to 32-ch @ 1080p
Video Output: HDMI and VGA
HDMI Resolution: Up to 4K
Storage Interface: 2 × SATA
