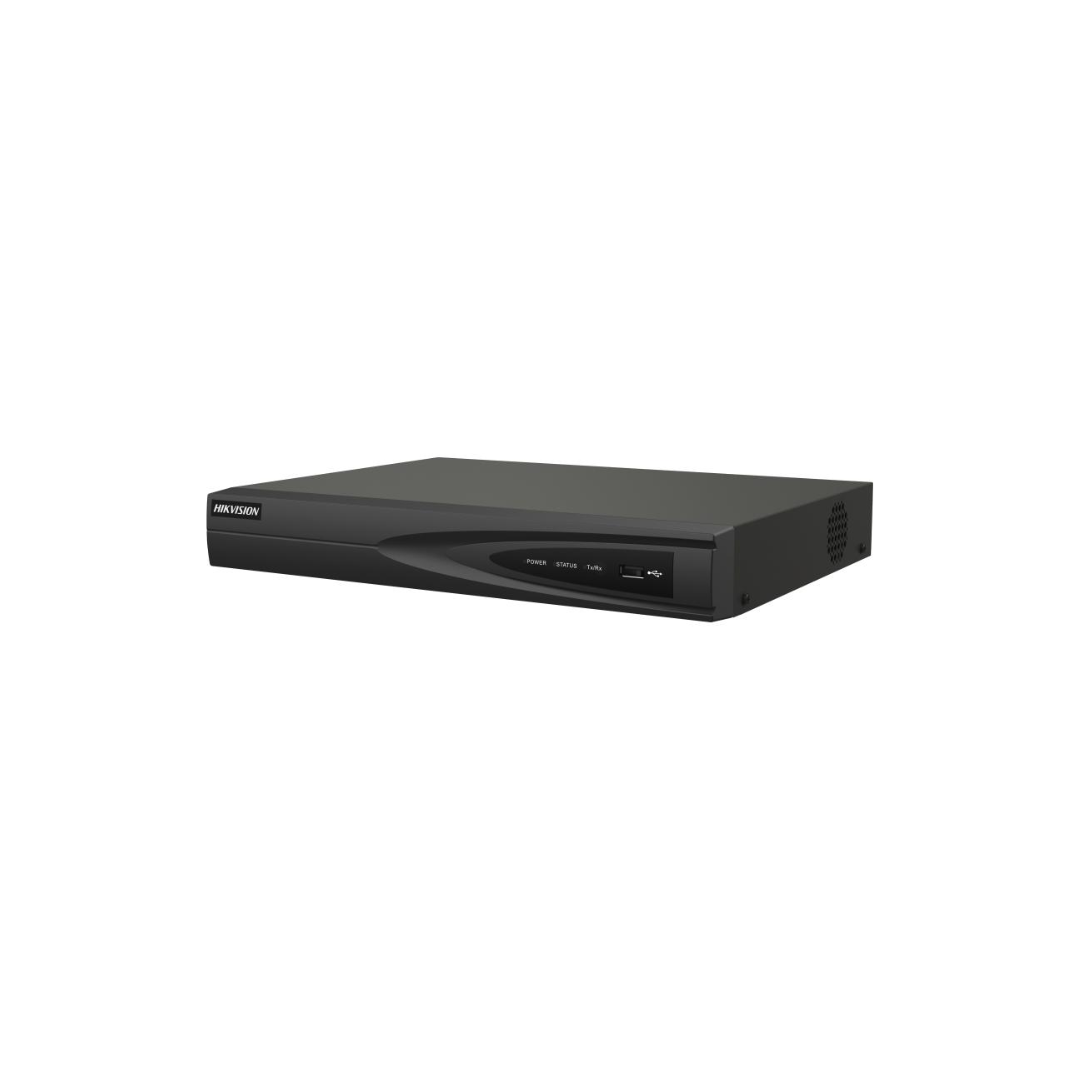

DS-7616NI-Q1 (16-Port) NVR

The Hikvision DS-7616NI-Q1 16-Port NVR is a reliable and efficient network video recorder designed for modern IP surveillance systems. Supporting up to 16 IP camera inputs, it provides centralized video recording, live monitoring, playback, and management for various security applications.

The NVR supports H.265+, H.265, H.264+, and H.264 video compression formats. H.265+ technology helps reduce storage requirements and network bandwidth usage, allowing efficient video recording and management.

With high-resolution video decoding, the recorder supports 1-channel @ 8 MP, 3-channel @ 4 MP, or 6-channel @ 1080p. This allows the NVR to efficiently manage high-definition video streams from connected IP cameras.

For intelligent security monitoring, the device features 4-channel Motion Detection 2.0. This smart feature helps identify human and vehicle movement, allowing users to focus on relevant security events and reduce unnecessary alerts.

For local video storage, the NVR features 1 SATA interface supporting compatible hard drives with a capacity of up to 8 TB. This provides reliable storage for surveillance footage and everyday video recording requirements.

With 16 IP camera inputs, H.265+ compression, high-resolution decoding, Motion Detection 2.0, and up to 8 TB HDD storage, the Hikvision DS-7616NI-Q1 16-Port NVR is a practical and dependable solution for residential, office, retail, warehouse, and commercial IP surveillance systems.

Key Features

• 16-Port IP Camera Support – Supports up to 16 IP camera inputs.
• H.265+ Video Compression – Helps reduce storage and bandwidth requirements.
• High-Resolution Decoding – Supports decoding up to 1-ch @ 8 MP, 3-ch @ 4 MP, or 6-ch @ 1080p.
• Motion Detection 2.0 – Features 4-channel intelligent motion detection.
• Human and Vehicle Detection – Helps identify relevant movement and reduce unnecessary alerts.
• 1 SATA Interface – Supports compatible HDD storage for local video recording.
• Up to 8 TB HDD Capacity – Provides reliable storage for surveillance footage.
• Reliable IP Surveillance – Suitable for residential, office, retail, warehouse, and commercial security systems.

Main Specifications

Model: DS-7616NI-Q1
NVR Type: 16-Port Network Video Recorder
IP Camera Inputs: Up to 16 IP cameras
Video Compression: H.265+ / H.265 / H.264+ / H.264
Decoding Capacity: 1-ch @ 8 MP / 3-ch @ 4 MP / 6-ch @ 1080p
Smart Features: 4-channel Motion Detection 2.0
Storage Interface: 1 × SATA
HDD Capacity: Up to 8 TB per HDD
Power Supply: 12 VDC
